Dwyer 3G-OTH-180774 — Technical Specifications

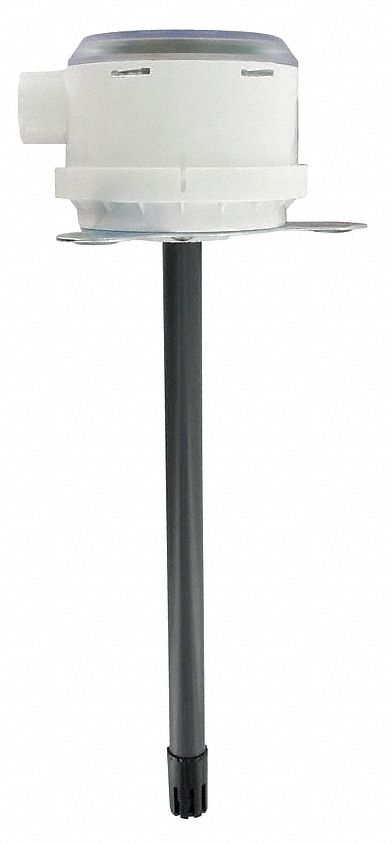

The Dwyer RHPX-2SDAB-00 is a duct-mount temperature and humidity transmitter with a 0 to 10V DC output. It features a Type II Thermistor (10K @ 25°C) sensing element, humidity accuracy of 2%, and temperature accuracy of ±0.36°F @ 77°F. The device operates on a power source of 15 to 35V DC or 15 to 29V AC, with a temperature range of -4 °F to 140 °F.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Type II Thermistor (10K @ 25°C), Screw Terminals, RHP |
| Brand | DWYER |
| Output | 0 to 10V DC |
| Power Source | 15 to 35V DC |
| Humidity Accuracy | 2% |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | Type II Thermistor (10K @ 25°C) |
| Temperature Accuracy | ±0.36°F @ 77°F |
| Manufacturer Part Number | RHPX-2SDAB-00 |
