Dwyer 3G-OTH-180772 — Technical Specifications

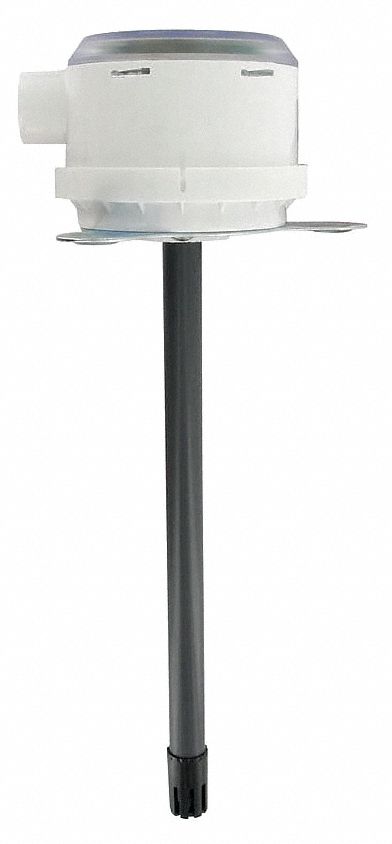

The Dwyer RHPX-3SDAF-00 is a duct-mount temperature and humidity transmitter with a 4 to 20mA DC output. It operates on a 10 to 35V DC power source and uses a thermistor (20K @ 25°C) sensing element. The device offers a humidity accuracy of 3% and a temperature accuracy of ±0.36°F @ 77°F, with a temperature range of -4 °F to 140 °F.
Technical Specifications
| Parameter | Value |
|---|---|
| NPS | 1/2 in |
| Type | Thermistor (20K @ 25°C), Screw Terminals |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Power Source | 10 to 35V DC |
| Humidity Accuracy | 3% |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | Thermistor (20K @ 25°C) |
| Temperature Accuracy | ±0.36°F @ 77°F |
| Manufacturer Part Number | RHPX-3SDAF-00 |
