Dwyer 3G-OTH-180784 — Technical Specifications

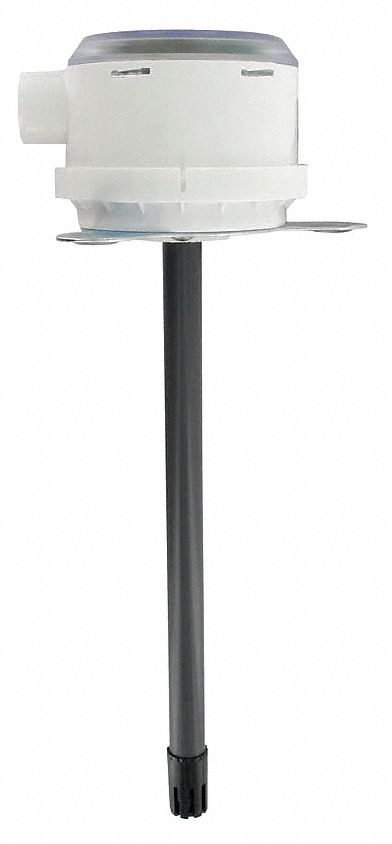

The Dwyer RHPX-3SDAE-00 is a duct-mount temperature and humidity transmitter with a 4 to 20mA DC output and a Pt1000 RTD sensing element. It operates on a 10 to 35V DC power source, measures humidity with 3% accuracy, and covers a temperature range of -4 °F to 140 °F with ±0.54°F accuracy at 32°F. The unit features screw terminals, a 1/2 in NPS connection, and a 9 in probe length.
Technical Specifications
| Parameter | Value |
|---|---|
| NPS | 1/2 in |
| Type | Pt1000 RTD, Screw Terminals |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Probe Lg | 9 in |
| Power Source | 10 to 35V DC |
| Humidity Accuracy | 3% |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | Pt1000 RTD |
| Temperature Accuracy | ±0.54°F @ 32°F |
| Manufacturer Part Number | RHPX-3SDAE-00 |
