Dwyer 3G-OTH-180778 — Technical Specifications

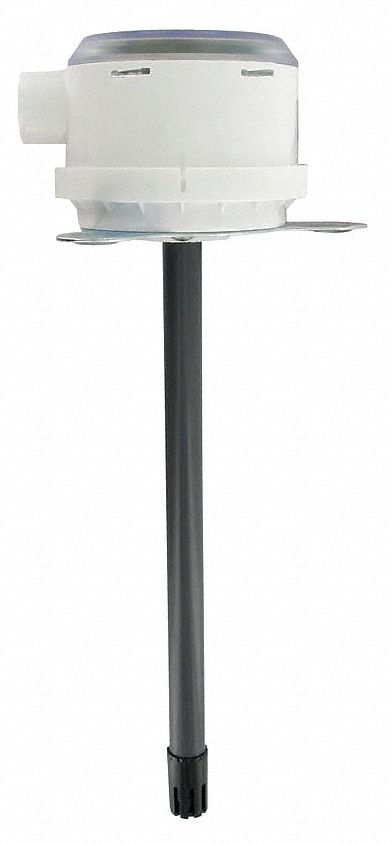

The Dwyer RHPX-3SDA0-00 is a duct-mount temperature and humidity transmitter with a 4 to 20mA DC output and a 0 to 5V DC solid state band gap sensing element. It operates on a 10 to 35V DC power source, measures humidity with 3% accuracy, and temperature from -4 °F to 140 °F with ±0.9°F accuracy at 77°F. This transmitter uses screw terminals for connection.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Screw Terminals, RHP |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Power Source | 10 to 35V DC |
| Humidity Accuracy | 3% |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | 0 to 5V DC Solid State Band Gap |
| Temperature Accuracy | ±0.9°F at 77°F |
| DC Solid State Band Gap | 0 to 5V |
| Manufacturer Part Number | RHPX-3SDA0-00 |
