Dwyer 3G-OTH-179163 — Technical Specifications

Name: Dwyer 3G-OTH-179163 DWYER Humidity Transmitters: 0 to 10V DC, 0 to 10V DC Solid State Band Gap, Screw Terminals, RHP (MPN RHP-3O22). Key specifications — Brand: DWYER; Humidity Accuracy: ±3% 20 to 80% RH at 25°C; Sensing Element Type: 0 to 10V DC Solid State Band Gap; Temperature Accuracy: ±0.9°F @ 77°F; Output: 0 to 10V DC; Power Source: 15 to 29V AC; Temperature Range: -4 °F to 140 °F.
Brand: Dwyer

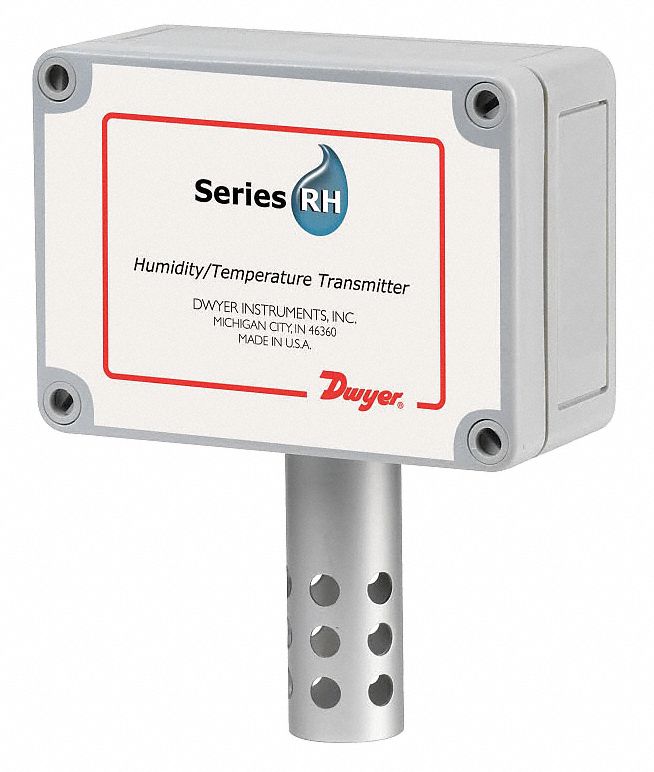

The Dwyer RHP-3O22 is an outdoor surface-mount temperature and humidity transmitter with a 0 to 10V DC output. It features a solid-state band gap sensing element, operates on 15 to 29V AC power, and covers a temperature range of -4 °F to 140 °F. Humidity accuracy is ±3% from 20 to 80% RH at 25°C, and temperature accuracy is ±0.9°F at 77°F.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Screw Terminals, RHP
Brand	DWYER
Output	0 to 10V DC
Power Source	15 to 29V AC
Humidity Accuracy	±3% 20 to 80% RH at 25°C
Temperature Range	-4 °F to 140 °F
Sensing Element Type	0 to 10V DC Solid State Band Gap
Temperature Accuracy	±0.9°F @ 77°F
DC Solid State Band Gap	0 to 10V
Manufacturer Part Number	RHP-3O22
