Dwyer 3G-OTH-175173 — Technical Specifications

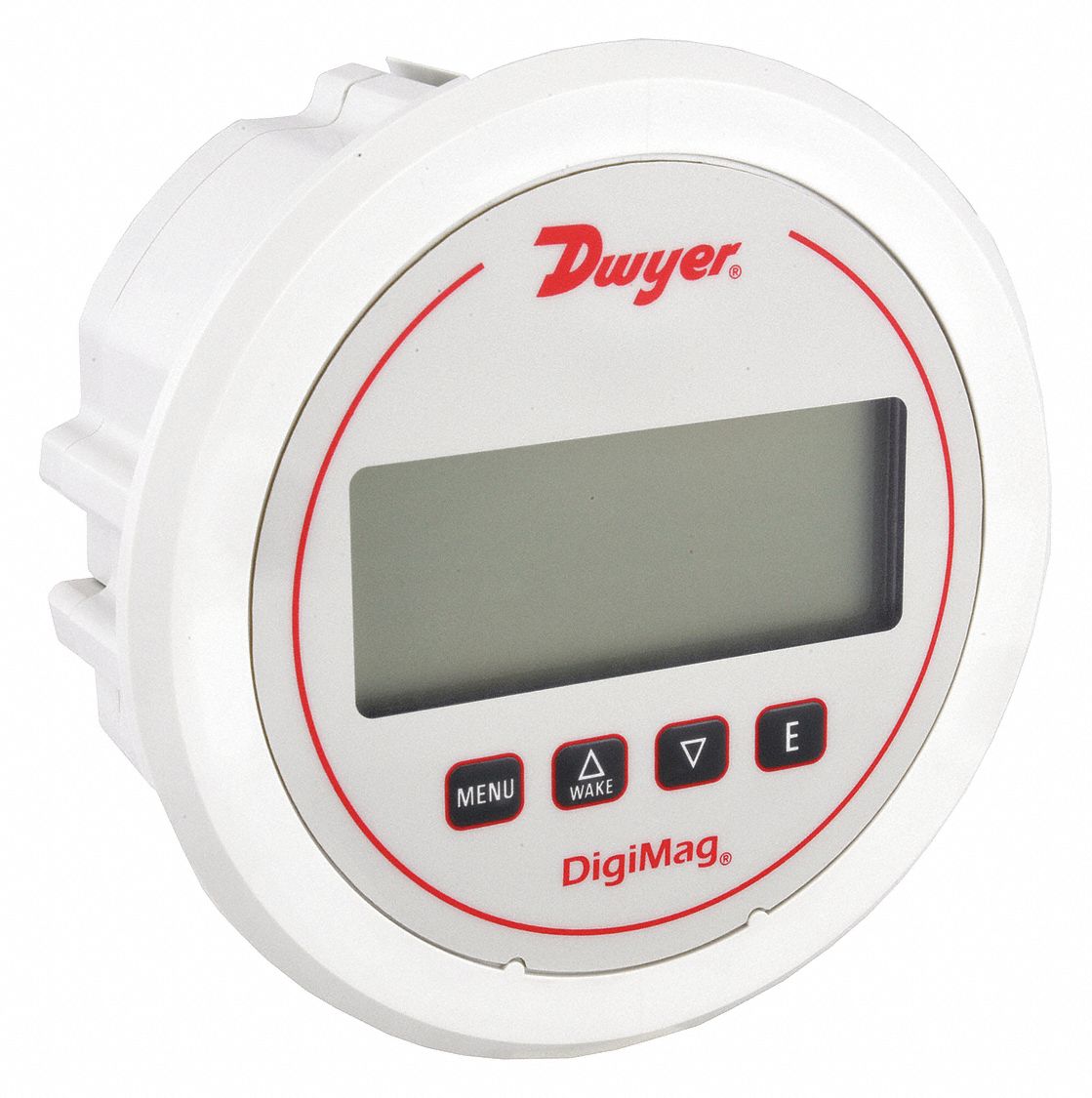

The DWYER DM-1000 Series Digital Differential Pressure Gauge (MPN DM-1207) is a digital differential air flow gauge for air and compatible gases. It features a glass-filled plastic case, a NEMA 4X enclosure rating, and an accuracy of ±1.00%. The gauge measures pressure in kPa, has a center back process connection for 0.125 in tubing, and an over-pressure limit of 100% full scale.
Technical Specifications
| Parameter | Value |
|---|---|
| Dial | 5 in |
| Type | Center Back, 4X, 4X |
| Brand | DWYER |
| Series | DM-1000 |
| Tubing | 0.125 in |
| Accuracy | ±1.00% |
| Case Material | Glass-Filled Plastic |
| Over-Pressure Limit | 100% Full Scale |
| NEMA Enclosure Rating | 4X |
| Manufacturer Part Number | DM-1207 |
| Pressure Measuring Units | kPa |
| Process Connection Location | Center Back |
