Dwyer 3G-OTH-175188 — Technical Specifications

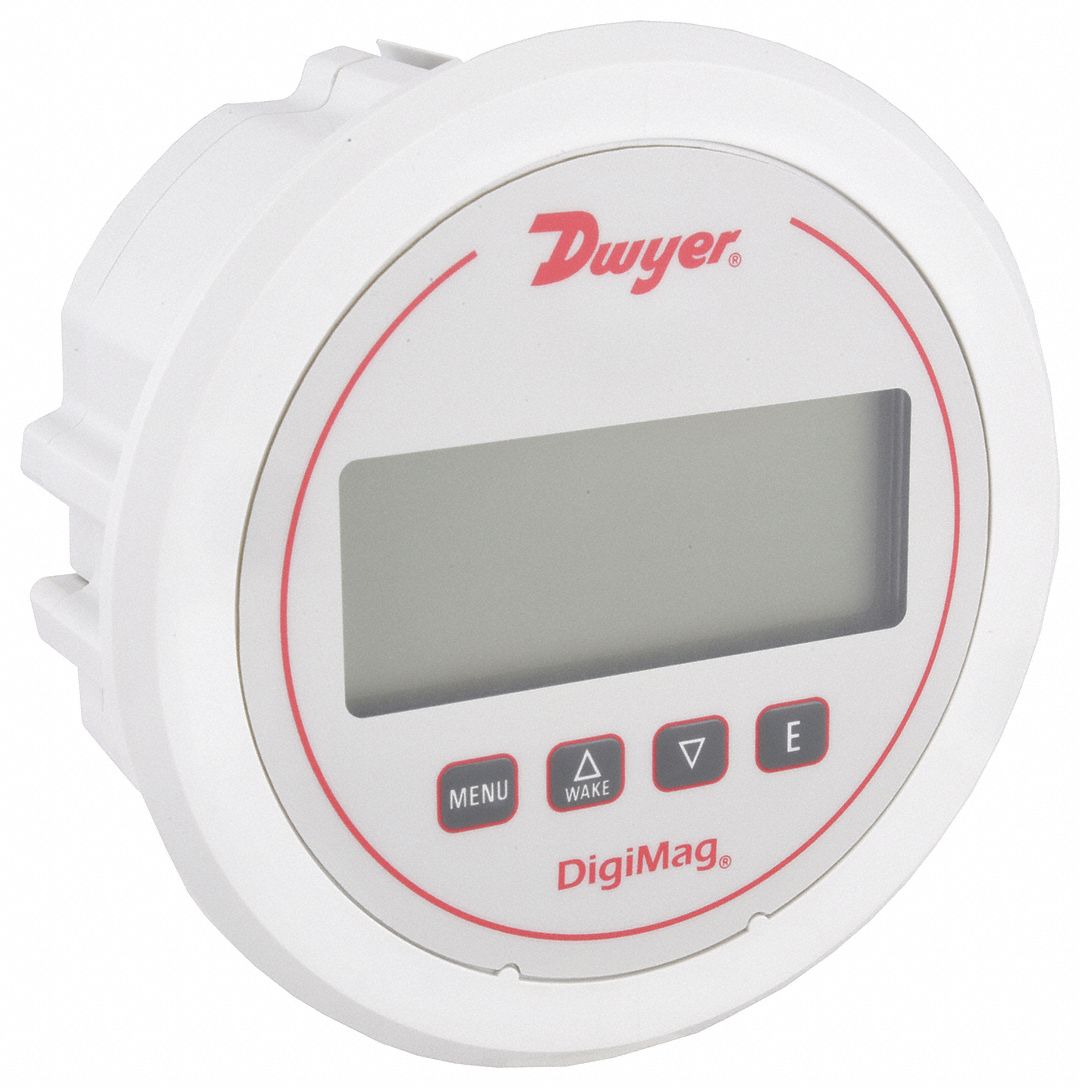

The DWYER DM-1000 Series Digital Differential Pressure Gauge (model DM-1108) is a digital differential pressure gauge for air and compatible gases. It features a glass-filled plastic case with a NEMA 4X enclosure rating, a center-back process connection for 0.125 in tubing, and a 5 in dial. Key supplied specifications include an accuracy of ±1.00%, an over-pressure limit of 100% full scale, and pressure measuring units in mBar.
Technical Specifications
| Parameter | Value |
|---|---|
| Dial | 5 in |
| Type | Center Back, 4X, 4X |
| Brand | DWYER |
| Series | DM-1000 |
| Tubing | 0.125 in |
| Accuracy | ±1.00% |
| Case Material | Glass-Filled Plastic |
| Over-Pressure Limit | 100% Full Scale |
| NEMA Enclosure Rating | 4X |
| Manufacturer Part Number | DM-1108 |
| Pressure Measuring Units | mBar |
| Process Connection Location | Center Back |
