Dwyer 3G-OTH-177231 — Technical Specifications

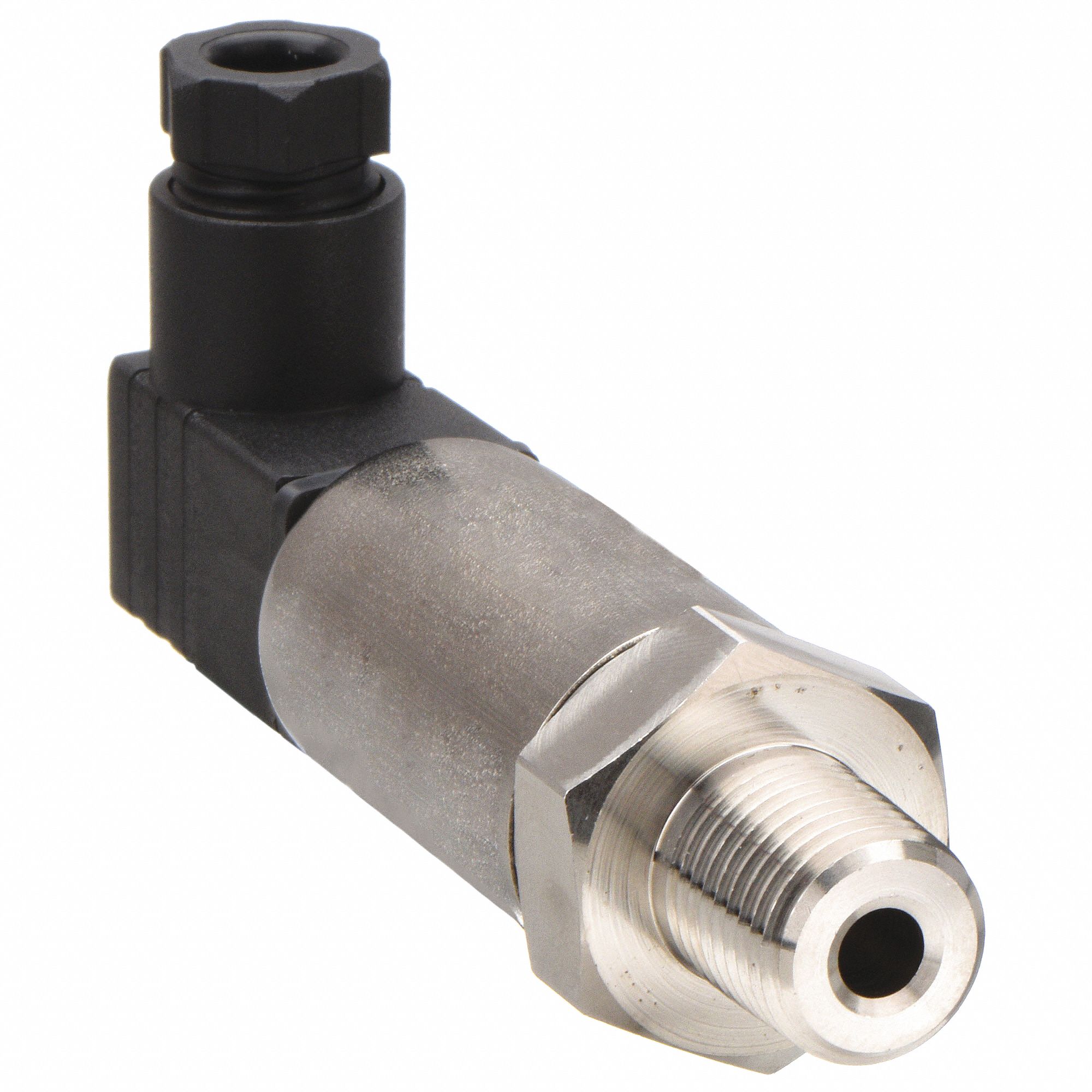

The Dwyer Series 628 Pressure Transmitter (SKU 3DRL8) is a pressure transmitter with a 4-Pin DIN 43650 Form C Connector, offering a 4 to 20mA DC output and a range of 0 psi to 500 psi. It features an accuracy of ±1%, an overpressure rating of 2,500 psig, and a stainless steel housing with IP66 and NEMA 4X ratings. The process connection is 1/4" NPT male, and no NIST-traceable calibration certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | 4-Pin DIN 43650 Form C Connector, IP66 /4X |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Series | 628 |
| Accuracy | ±1% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 2,500 psig |
| Housing Material | Stainless Steel |
| Process Connection Type | NPT |
| Manufacturer Part Number | 628-14-GH-P1-E4-S1 |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
