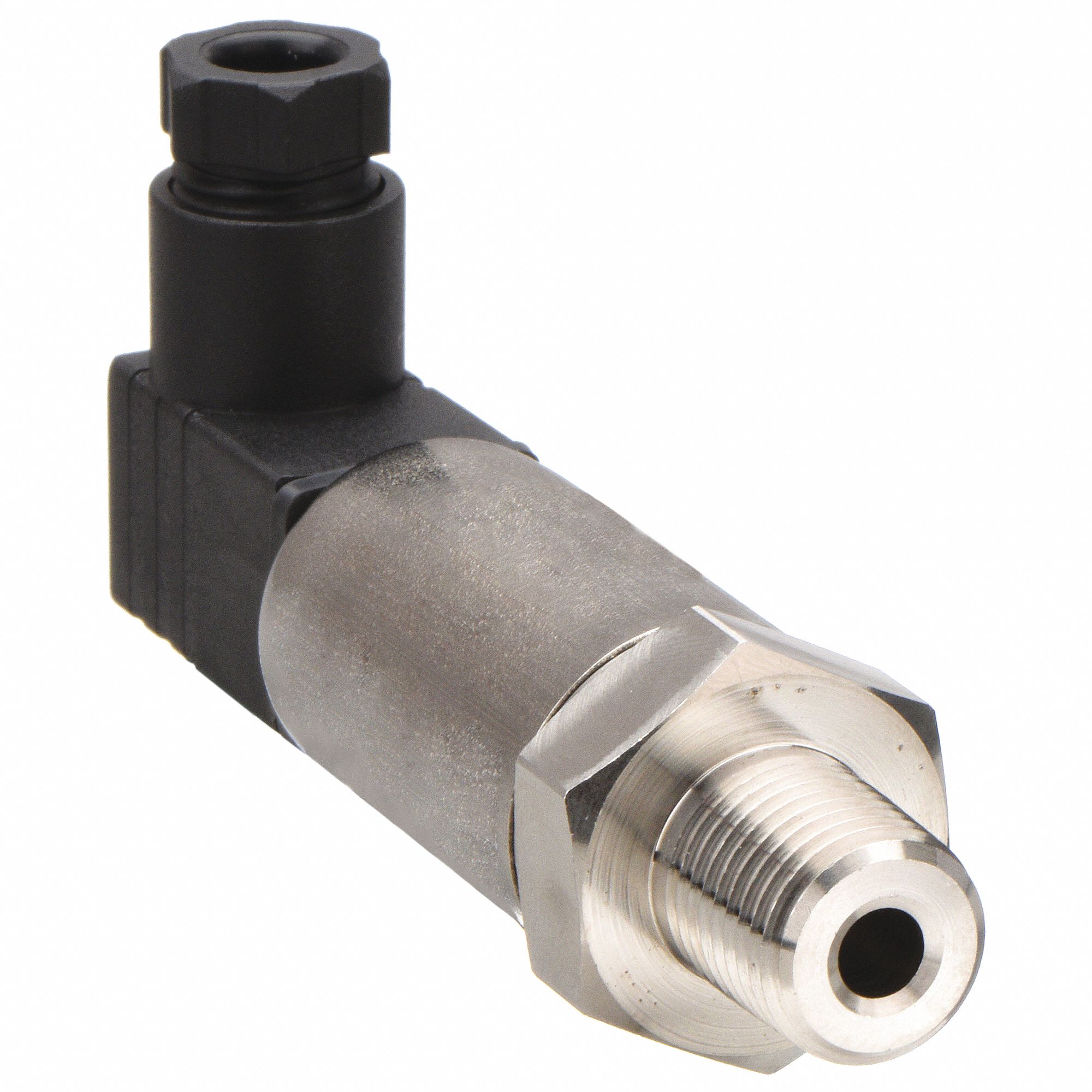

Dwyer 3G-OTH-177234 — Technical Specifications

Name: Dwyer 3G-OTH-177234 Pressure Transmitter: 0 psi to 100 psi, 4 to 20mA DC, 4-Pin DIN 43650 Form C Connector, IP66 /4X (MPN 628-10-GH-P1-E4-S1). Key specifications — Accuracy: ±1%; NEMA Rating: 4X; Calibration Certificate Included: No NIST-Traceable Calibration Certificate Included; IP Rating: IP66; Housing Material: Stainless Steel; Output: 4 to 20mA DC; Overpressure: 500 psig; Process Connection Type: NPT.
Brand: Dwyer

The Dwyer Series 628 Pressure Transmitter (SKU 3DRL4) is a 0 psi to 100 psi pressure transmitter with a 4-Pin DIN 43650 Form C Connector. It features a 4 to 20mA DC output, ±1% accuracy, and an overpressure rating of 500 psig. The stainless steel housing carries IP66 and NEMA 4X ratings, with a male NPT process connection.

View Product & Quote

Technical Specifications

Parameter	Value
DC	4 to 20mA
Type	4-Pin DIN 43650 Form C Connector, IP66 /4X
Brand	DWYER
Output	4 to 20mA DC
Series	628
Accuracy	±1%
IP Rating	IP66
NEMA Rating	4X
Overpressure	500 psig
Housing Material	Stainless Steel
Process Connection Type	NPT
Manufacturer Part Number	628-10-GH-P1-E4-S1
Process Connection Gender	Male
Calibration Certificate Included	No NIST-Traceable Calibration Certificate Included
