Dwyer 3G-OTH-177226 — Technical Specifications

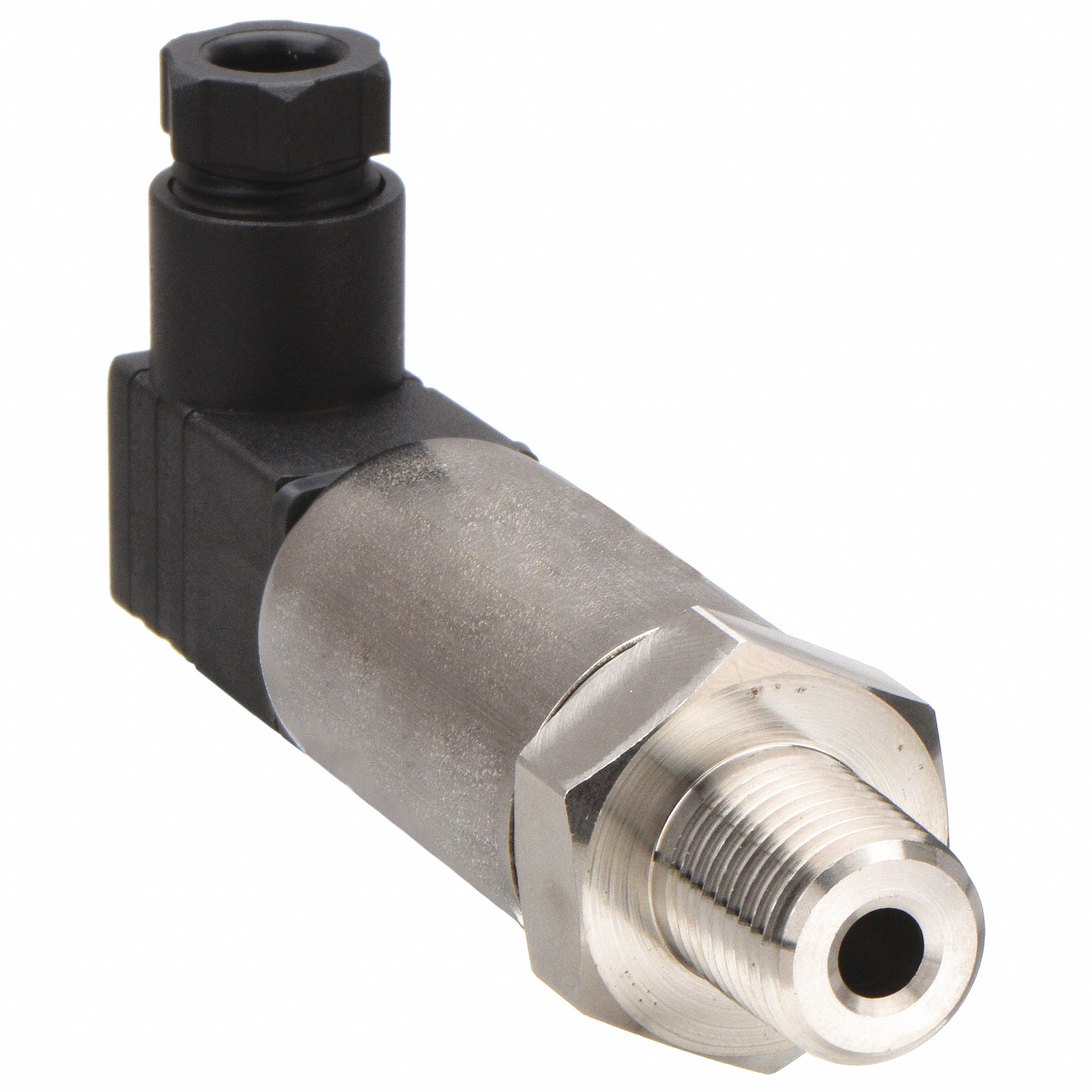

The Dwyer Series 626 Pressure Transmitter (MPN 626-10-GH-P1-E4-S1) is a 0 psi to 100 psi pressure transmitter with a 4-Pin DIN 43650 Form C Connector and a 4 to 20mA DC output. It features an accuracy of ±0.25%, an IP66 and NEMA 4X rating, a stainless steel housing, and a 500 psig overpressure rating with a male NPT process connection.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Type | 4-Pin DIN 43650 Form C Connector, IP66 /4X |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Series | 626 |
| Accuracy | ±0.25% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 500 psig |
| Housing Material | Stainless Steel |
| Process Connection Type | NPT |
| Manufacturer Part Number | 626-10-GH-P1-E4-S1 |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
