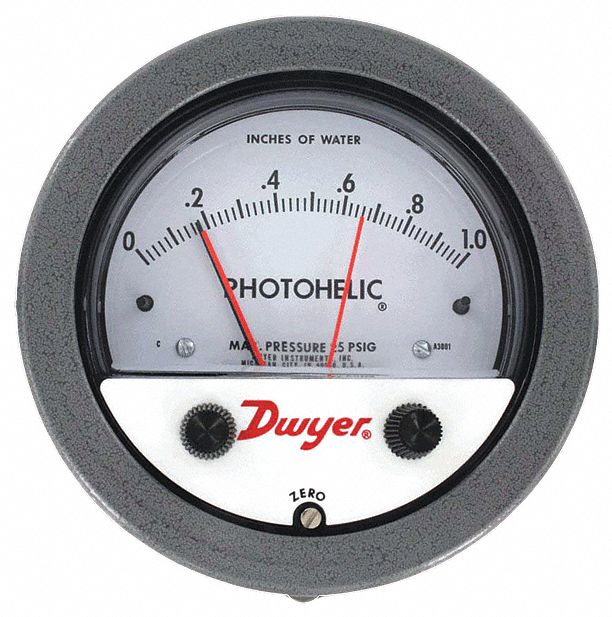

Dwyer 3G-OTH-175313 — Technical Specifications
The Dwyer A3030 is a low operating pressure differential gauge with switch from the A3000 series, featuring a 4-inch dial and a 1/8-inch NPT female connection. It utilizes a diaphragm sensor with ±2% gauge accuracy and an aluminum housing. Note that a certificate of calibration is not included with this unit.
Technical Specifications
| Parameter | Value |
|---|---|
| Dial | 4 in |
| Type | ±2% Gauge Accuracy, A3000, Aluminum |
| Series | A3000 |
| Sensor Type | Diaphragm |
| Gauge Accuracy | ±2% |
| Housing Material | Aluminum |
| Manufacturer Part Number | A3030 |
| Certificate Of Calibration | Not Included |
