Dwyer 3G-OTH-92219 — Technical Specifications

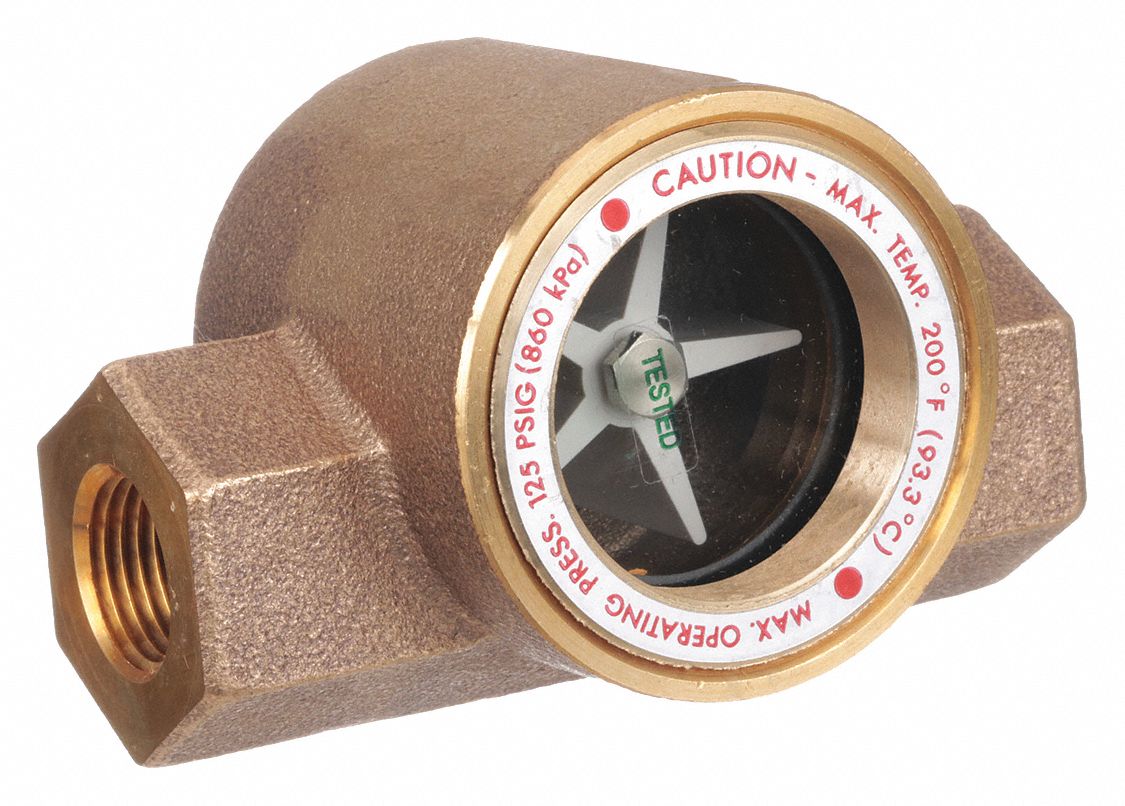

The DWYER Window Sight Flow Indicator with Impeller: Rotor (MPN SFI-100-3/4) is a flow sight designed for glycol media. It features a bronze body, 3/4-inch FNPT connections, a tempered glass sight and wetted material, and a Buna-N seal. This unit is configured for vertical-up flow direction.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 3/4 in |
| Type | Bronze |
| Brand | DWYER |
| Seal Material | Buna-N |
| Flow Direction | Vertical Up |
| For Media Type | Glycol |
| Sight Material | Tempered Glass |
| Connection Size | 3/4 in |
| Connection Type | FNPT |
| Wetted Material | Tempered Glass |
| Manufacturer Part Number | SFI-100-3/4 |
