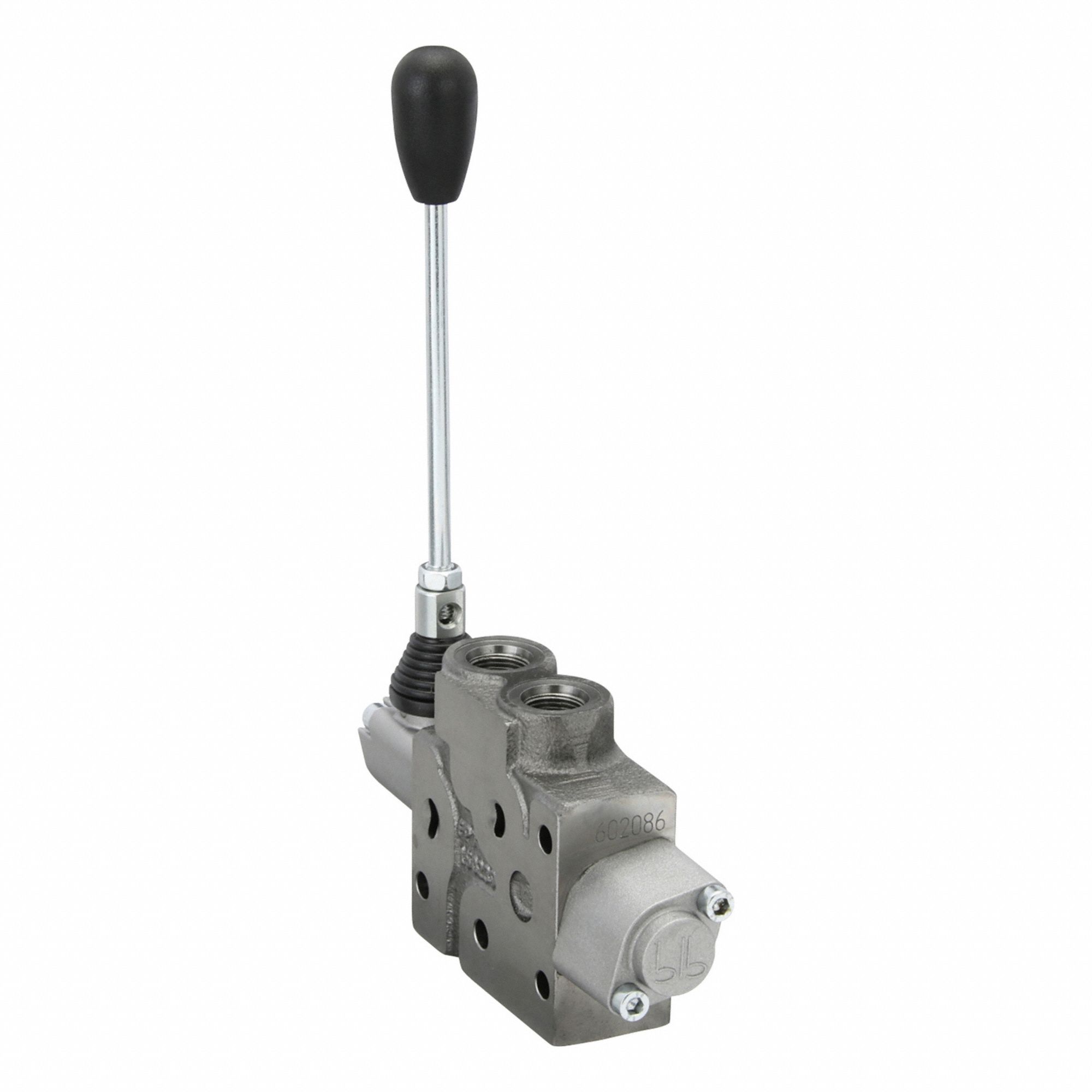

Delavan 3G-OTH-169255 — Technical Specifications

Name: Delavan 3G-OTH-169255 DELAVAN Hydraulic Directional Valve: Four-Way / Three Positions, 12 gpm Flow Rate - Max, Manual (MPN BC40S F /MO D1/). Key specifications — Actuation Mechanism: Manual; Port Connections: (2) Work; Spool Action: Spring Center to Neutral; Work Connection Size: #8; Work Connection Type: SAE O-Ring Boss; Brand: DELAVAN; Pressure Connection Size: 3/4″-16.
Brand: Delavan

The DELAVAN Hydraulic Directional Valve is a four-way, three-position stack valve working section with manual actuation and spring center to neutral spool action. It features (2) work ports with #8 SAE O-Ring Boss connections and a 3/4″-16 pressure connection size, supporting a maximum flow rate of 12 gpm.

View Product & Quote

Technical Specifications

Parameter	Value
Type	12 gpm Flow Rate - Max, Manual
Brand	DELAVAN
Spool Action	Spring Center to Neutral
Port Connections	(2) Work
Actuation Mechanism	Manual
Work Connection Size	#8
Work Connection Type	SAE O-Ring Boss
Manufacturer Part Number	BC40S F /MO D1/
Pressure Connection Size	3/4″-16
