Dayton 3G-OTH-83942 — Technical Specifications

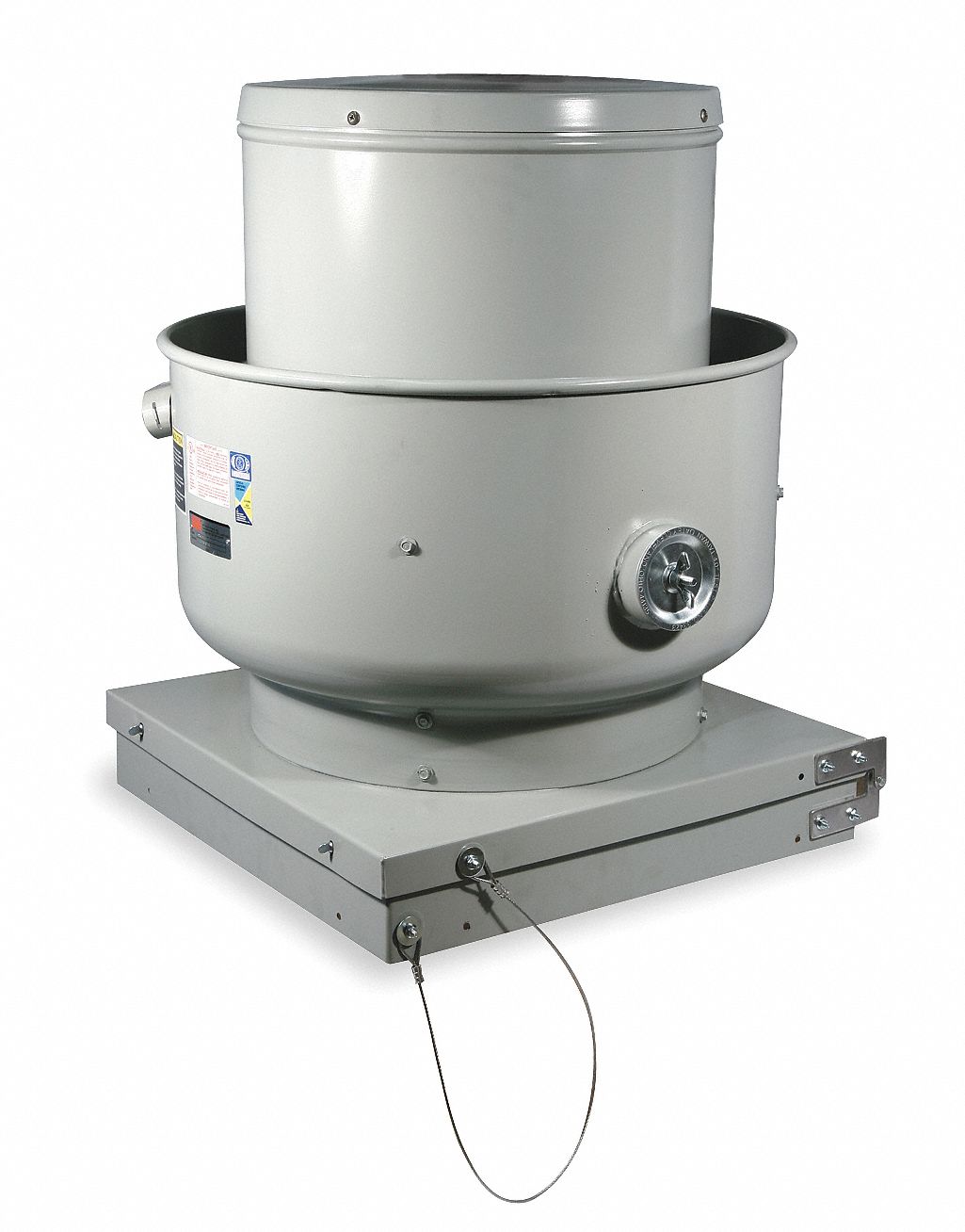

The Dayton Centrifugal Upblast Roof Exhaust Fan (belt drive, SKU 7YR66) is a kitchen air belt-drive fan with drive package, featuring a 14 3/4 in wheel and 3,125 cfm exhaust airflow. It operates on 208-230/460V AC with an open dripproof motor enclosure, single speed, and standard motor efficiency. This unassembled unit is designed for roof mounting and is not intended for high-static pressure applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 3,125 cfm |
| Brand | DAYTON |
| Wheel | 14 3/4 in |
| Assembly | Unassembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard Motor |
| Number Of Speeds | 1 |
| Mounting Location | Roof |
| Nameplate Voltage | 208-230/460V AC |
| High-Efficiency Motor | No |
| Includes Drive Package | Yes |
| Manufacturer Part Number | 7YR66 |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | No |
