Dayton 3G-OTH-83844 — Technical Specifications

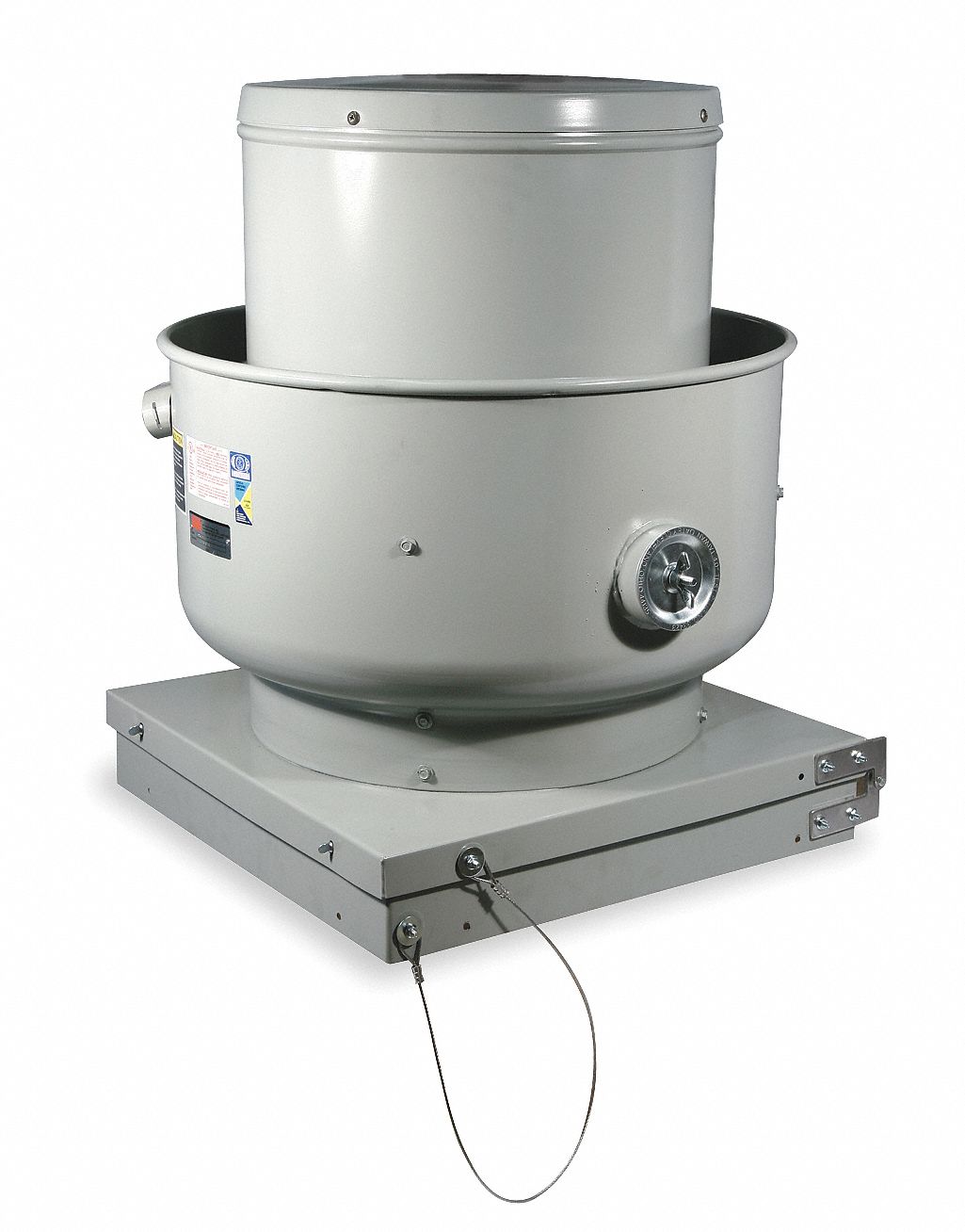

The DAYTON Centrifugal Upblast Roof Exhaust Fan (SKU 7YR43) is a belt-drive kitchen air fan with a square base, designed for roof mounting. It includes a drive package and an open dripproof motor with a single speed, operating at 115/230V AC. The fan delivers 2,192 cfm with a 14 3/4 in wheel, and is not intended for high-static pressure applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 2,192 cfm |
| Brand | DAYTON |
| Wheel | 14 3/4 in |
| Assembly | Unassembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | Standard Motor |
| Number Of Speeds | 1 |
| Mounting Location | Roof |
| Nameplate Voltage | 115/230V AC |
| High-Efficiency Motor | No |
| Includes Drive Package | Yes |
| Manufacturer Part Number | 7YR43 |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 0 to 1,999 cfm |
| For High-Static Pressure Applications | No |
