Dayton 3G-OTH-81181 — Technical Specifications

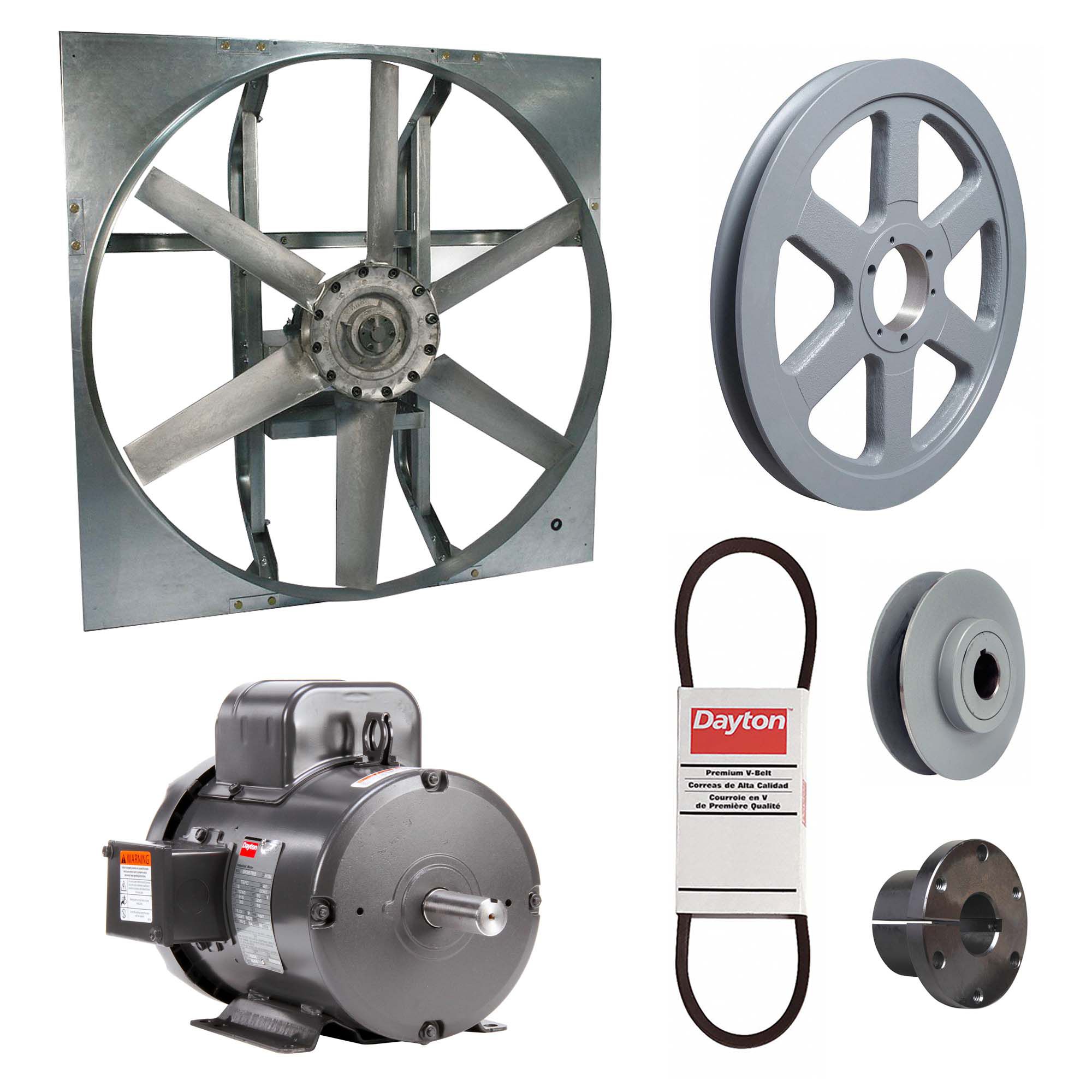

The Dayton 7M8B6 is an unassembled belt-drive panel exhaust fan with drive package, featuring a 36-inch blade, 3 hp motor, and 22,791 cfm airflow at 115/230V AC single-phase. It has a zinc-plated steel frame, cast construction, a totally enclosed fan-cooled motor with Class F insulation, and no intake guards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 115/230V |
| Type | 3 hp, 22,791 cfm, 1 ph |
| Blade | 36 in |
| Brand | DAYTON |
| Assembled | Unassembled |
| Guard Type | None |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class F |
| Number Of Speeds | 1 |
| Nameplate Voltage | 115/230V AC |
| Guard Type Subheads | Without Intake Guards |
| Method Of Construction | Cast |
| Manufacturer Part Number | 7M8B6 |
