Dayton 3G-OTH-81665 — Technical Specifications

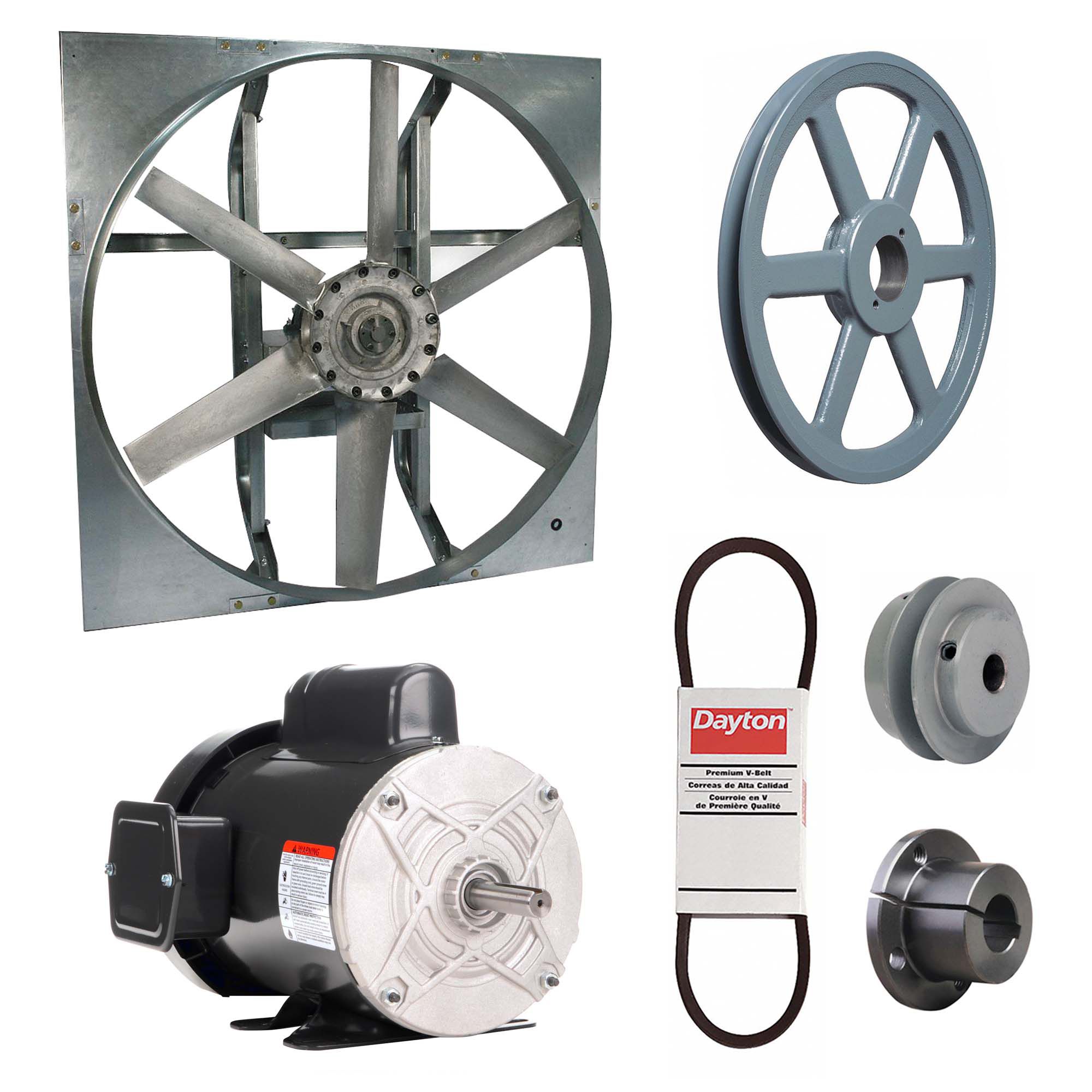

Name: Dayton 3G-OTH-81665 Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 3/4 hp, 10,798 cfm, 115/208-230V AC, 1 ph (MPN 7M896). Key specifications — Frame Finish: Zinc Plated; Assembled: Unassembled; Brand: DAYTON; Nameplate Voltage: 115/208-230V AC; Frame Material: Steel; Guard Type: None; Method of Construction: Cast; Motor Insulation: Class B.
Brand: Dayton

The DAYTON Exhaust Fan with Drive Package is an unassembled belt-drive panel exhaust fan (SKU 7M896) featuring a 30-inch blade, 3/4 hp motor, and 10,798 cfm airflow. It operates on 115/208-230V AC, single-phase power, with a totally enclosed fan-cooled motor and Class B insulation. The fan has a zinc-plated steel frame, cast construction, and no intake guards.

View Product & Quote

Technical Specifications

Parameter	Value
AC	115/208-230V
Type	3/4 hp, 10,798 cfm, 1 ph
Blade	30 in
Brand	DAYTON
Assembled	Unassembled
Guard Type	None
Frame Finish	Zinc Plated
Frame Material	Steel
Motor Enclosure	Totally Enclosed Fan Cooled
Enclosure Design	Totally Enclosed Motor
Motor Insulation	Class B
Number Of Speeds	1
Nameplate Voltage	115/208-230V AC
Guard Type Subheads	Without Intake Guards
Method Of Construction	Cast
Manufacturer Part Number	7M896
