Dayton 3G-OTH-81628 — Technical Specifications

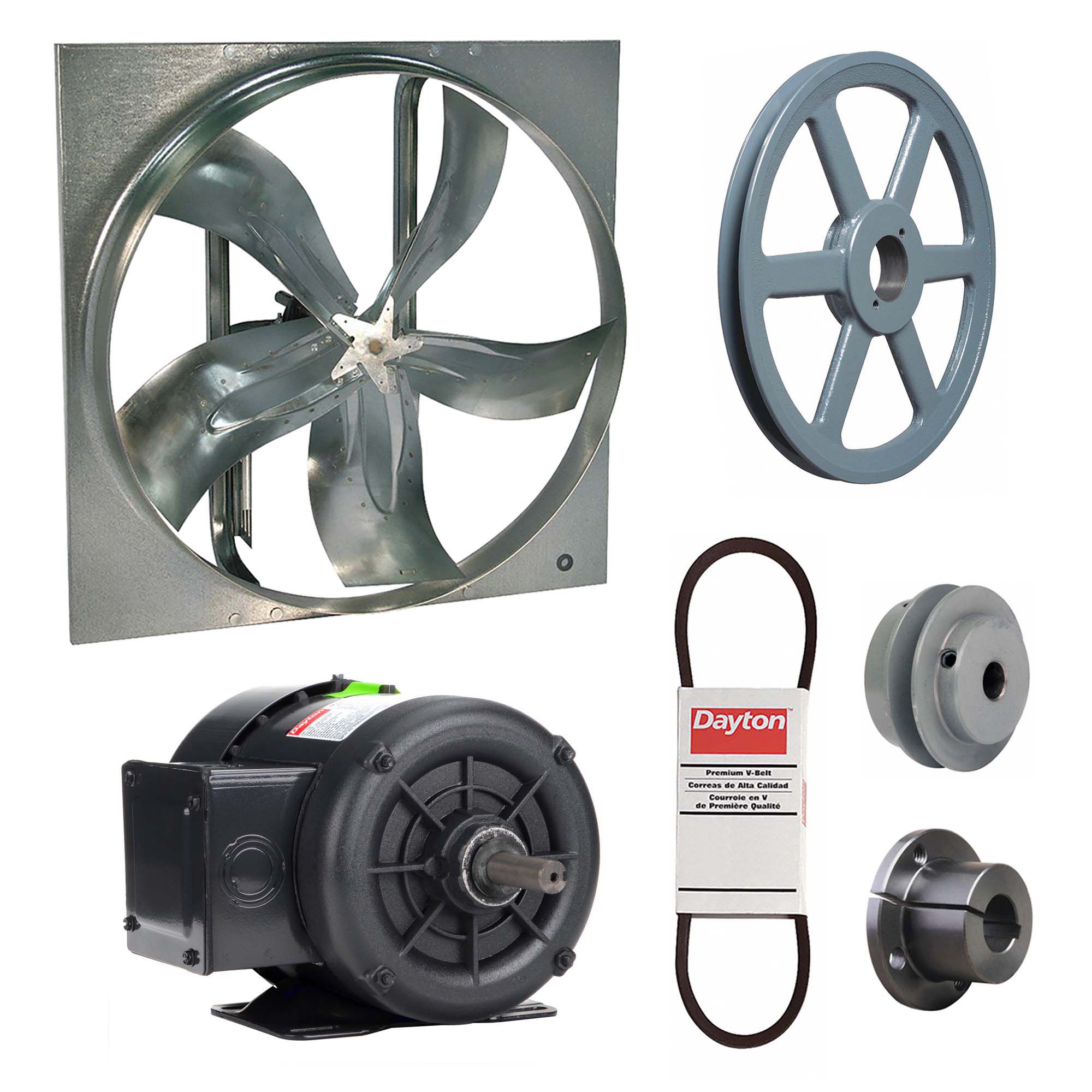

The Dayton 7M807 is an unassembled belt-drive panel exhaust fan with a 36-inch blade, 1/2 hp motor, and 12,492 cfm airflow. It features a 3-phase, totally enclosed fan-cooled motor with Class B insulation, rated for 208-230/460V AC. The steel frame has a zinc-plated finish, and the unit is supplied without intake guards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 208-230/460V |
| Type | 1/2 hp, 12,492 cfm, 3 ph |
| Blade | 36 in |
| Brand | DAYTON |
| Assembled | Unassembled |
| Guard Type | None |
| Motor Type | 3-Phase |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class B |
| Number Of Speeds | 1 |
| Nameplate Voltage | 208-230/460V AC |
| Guard Type Subheads | Without Intake Guards |
| Manufacturer Part Number | 7M807 |
