Dayton 3G-OTH-80872 — Technical Specifications

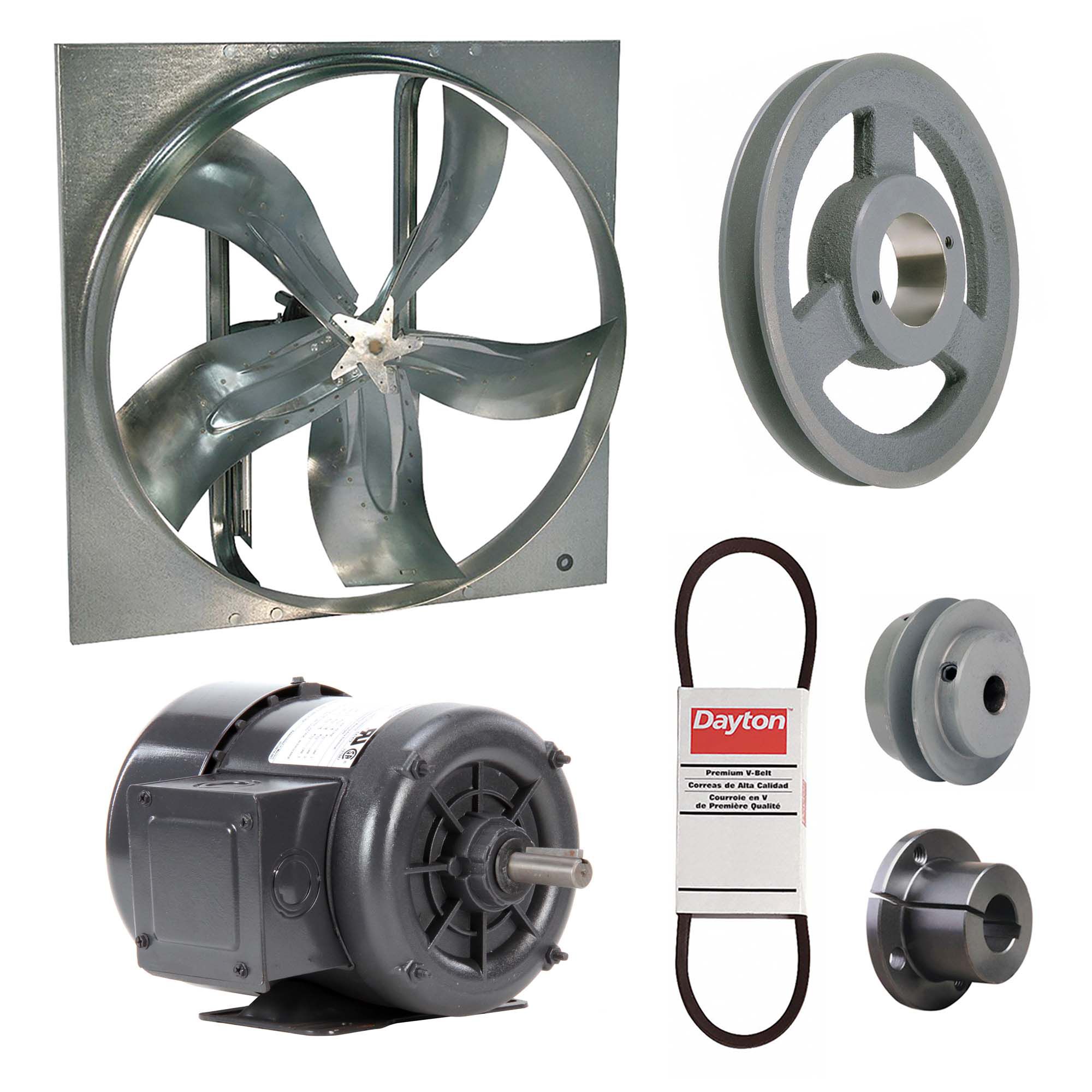

The Dayton 7M7X1 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 24-inch blade, 3/4 hp, and 7,927 cfm. It operates on 208-230/460V AC, 3-phase power with a totally enclosed fan-cooled motor, Class B insulation, and a single speed. The fan has a zinc-plated steel frame and is supplied without intake guards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 208-230/460V |
| Type | 3/4 hp, 7,927 cfm, 3 ph |
| Blade | 24 in |
| Brand | DAYTON |
| Assembled | Unassembled |
| Guard Type | None |
| Motor Type | 3-Phase |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class B |
| Number Of Speeds | 1 |
| Nameplate Voltage | 208-230/460V AC |
| Guard Type Subheads | Without Intake Guards |
| Manufacturer Part Number | 7M7X1 |
