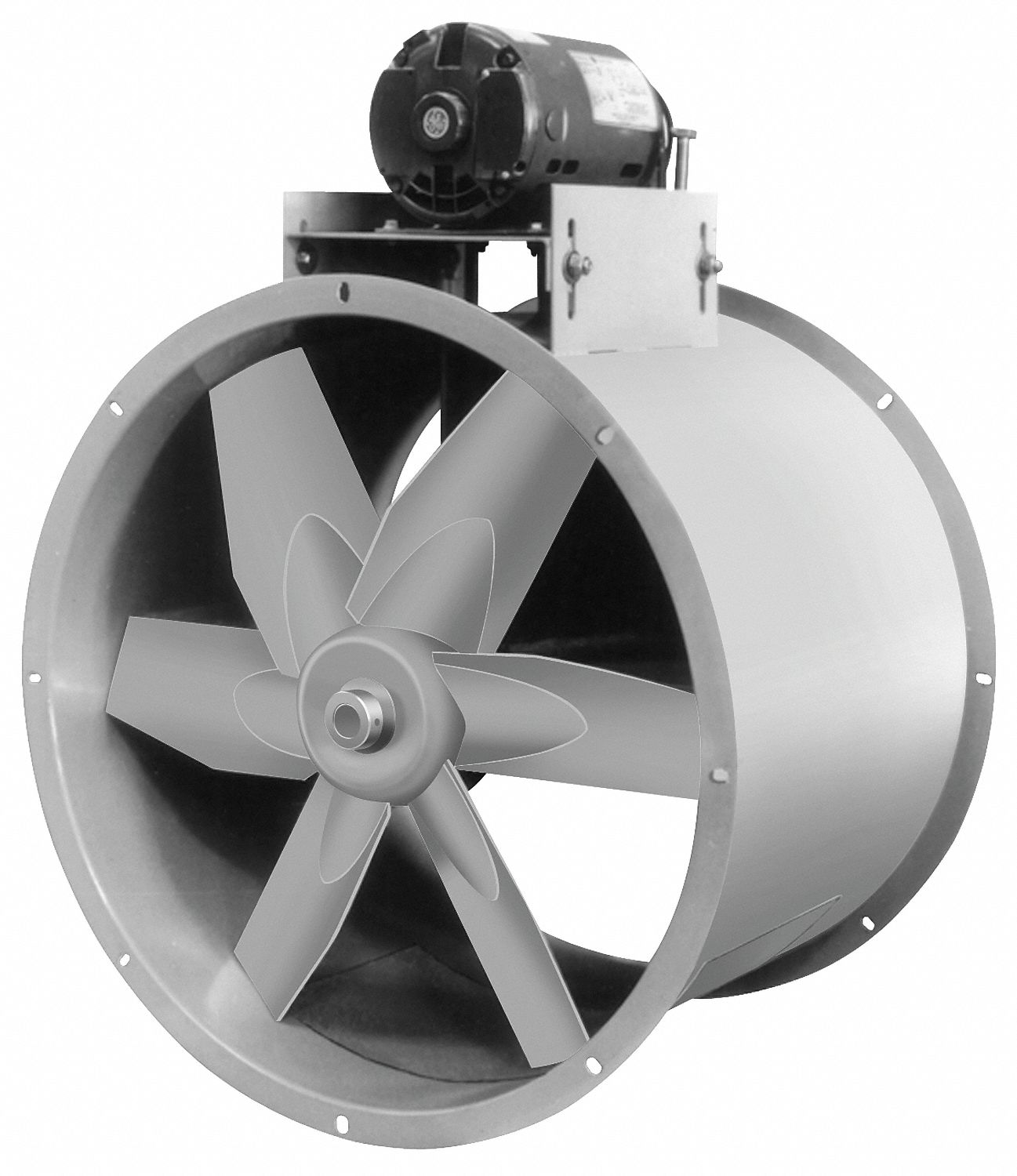

Dayton 3G-OTH-79448 — Technical Specifications

Name: Dayton 3G-OTH-79448 DAYTON Tubeaxial Fan: Emergency Smoke, 48 in Blade, 31,260 cfm @ 0.000 in SP, 230V AC, 1 Phase, 5 hp (MPN 7J378). Key specifications — Brand: DAYTON; Includes Drive Package: Yes; Assembly: Unassembled; Nameplate Voltage: 230V AC; Mounting Orientation: Horizontal; Hazardous Location Specification: Not Rated; Motor Enclosure: Totally Enclosed Fan Cooled; Motor Type: Capacitor-Start Capacitor-Run.
Brand: Dayton

The DAYTON Tubeaxial Fan: Emergency Smoke (SKU 7J378) is an unassembled emergency smoke belt-drive fan with drive, featuring a 48-inch blade and a 5 hp motor. It delivers 31,260 cfm at 0.000 in SP, with a nameplate voltage of 230V AC, single-phase, and a capacitor-start capacitor-run motor in a totally enclosed fan-cooled enclosure. Designed for horizontal mounting, this unit is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230V
Type	31,260 cfm @ 0.000 in SP, 5 hp
Blade	48 in
Brand	DAYTON
Phase	1
Assembly	Unassembled
Motor Type	Capacitor-Start Capacitor-Run
Motor Enclosure	Totally Enclosed Fan Cooled
Number Of Speeds	1
Nameplate Voltage	230V AC
Mounting Orientation	Horizontal
Includes Drive Package	Yes
Manufacturer Part Number	7J378
Airflow @ 0.000 In SP - Range	20,000 to 40,000 cfm
Hazardous Location Specification	Not Rated
