Dayton 3G-OTH-81105 — Technical Specifications

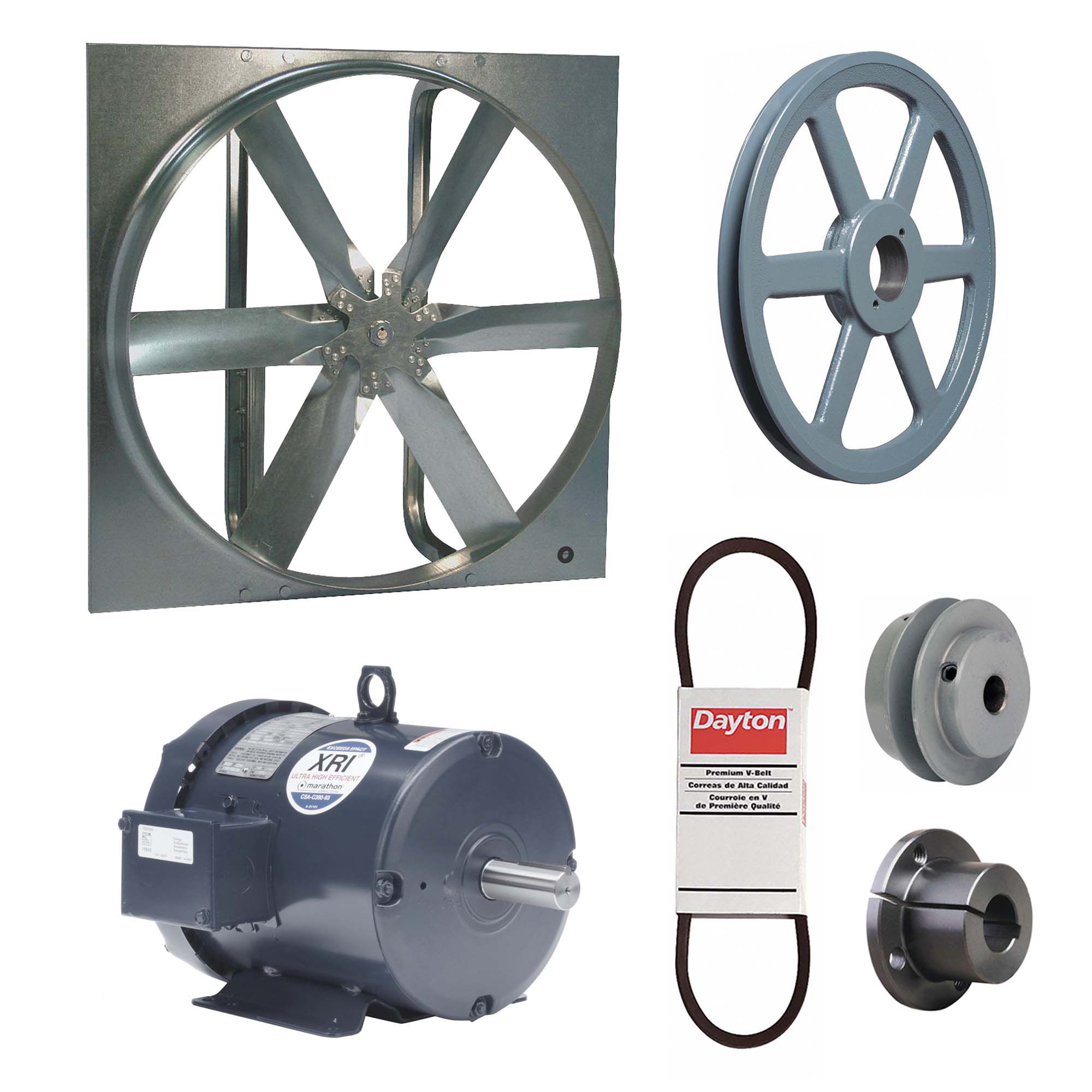

The Dayton 7D529 is an unassembled belt-drive panel exhaust fan with a 48-inch blade, powered by a 3 hp, 3-phase motor rated at 230/460V AC and delivering 31,442 cfm. It features a zinc-plated steel frame, a totally enclosed fan-cooled motor with Class F insulation, and is supplied without intake guards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | 3 hp, 31,442 cfm, 3 ph |
| Blade | 48 in |
| Brand | DAYTON |
| Assembled | Unassembled |
| Guard Type | None |
| Motor Type | 3-Phase |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class F |
| Number Of Speeds | 1 |
| Nameplate Voltage | 230/460V AC |
| Guard Type Subheads | Without Intake Guards |
| Manufacturer Part Number | 7D529 |
