Dayton 3G-OTH-80893 — Technical Specifications

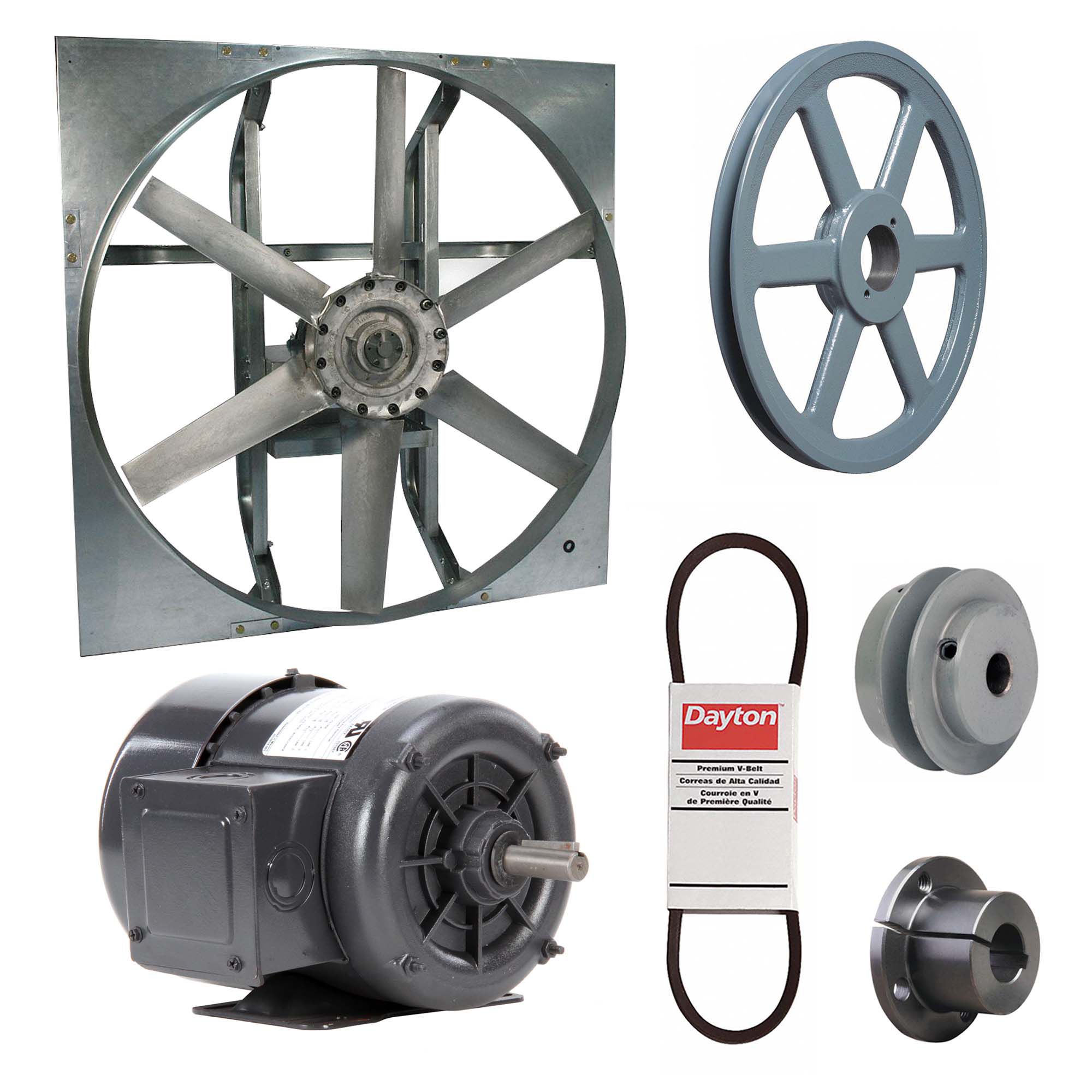

The Dayton 7AR56 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 24-inch blade, 1/3 hp, and 5,608 cfm. It operates on 230/460V AC, 3-phase power with a single-speed, totally enclosed nonventilated motor. The fan has a zinc-plated steel frame and cast construction, without intake guards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | 1/3 hp, 5,608 cfm, 3 ph |
| Blade | 24 in |
| Brand | DAYTON |
| Assembled | Unassembled |
| Guard Type | None |
| Motor Type | 3-Phase |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class B |
| Number Of Speeds | 1 |
| Nameplate Voltage | 230/460V AC |
| Guard Type Subheads | Without Intake Guards |
| Method Of Construction | Cast |
| Manufacturer Part Number | 7AR56 |
