Dayton 3G-OTH-78816 — Technical Specifications

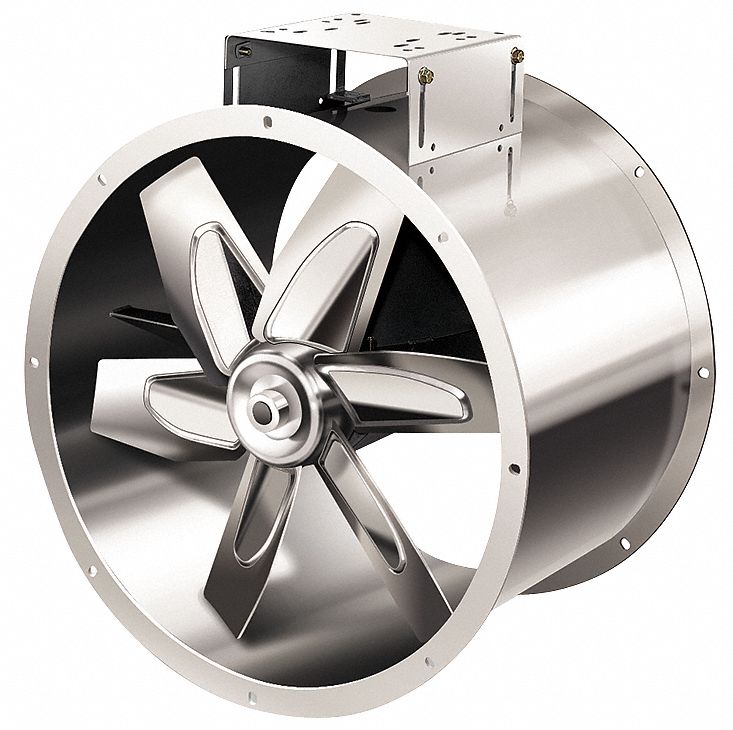

The DAYTON Tubeaxial Fan: Corrosive Vapor (SKU 7AG52) is an unassembled, belt-drive fan with drive package, featuring a 24-inch blade and delivering 10,310 cfm at 0.000 in SP. It operates on 115/230V AC single-phase power with a capacitor-start capacitor-run motor in a totally enclosed fan-cooled enclosure, designed for vertical mounting. This unit is not rated for hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 115/230V |
| Type | 10,310 cfm @ 0.000 in SP |
| Blade | 24 in |
| Brand | DAYTON |
| Phase | 1 |
| Assembly | Unassembled |
| Motor Type | Capacitor-Start Capacitor-Run |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Number Of Speeds | 1 |
| Nameplate Voltage | 115/230V AC |
| Mounting Orientation | Vertical |
| Includes Drive Package | Yes |
| Manufacturer Part Number | 7AG52 |
| Airflow @ 0.000 In SP - Range | 10,000 to 19,999 cfm |
| Hazardous Location Specification | Not Rated |
