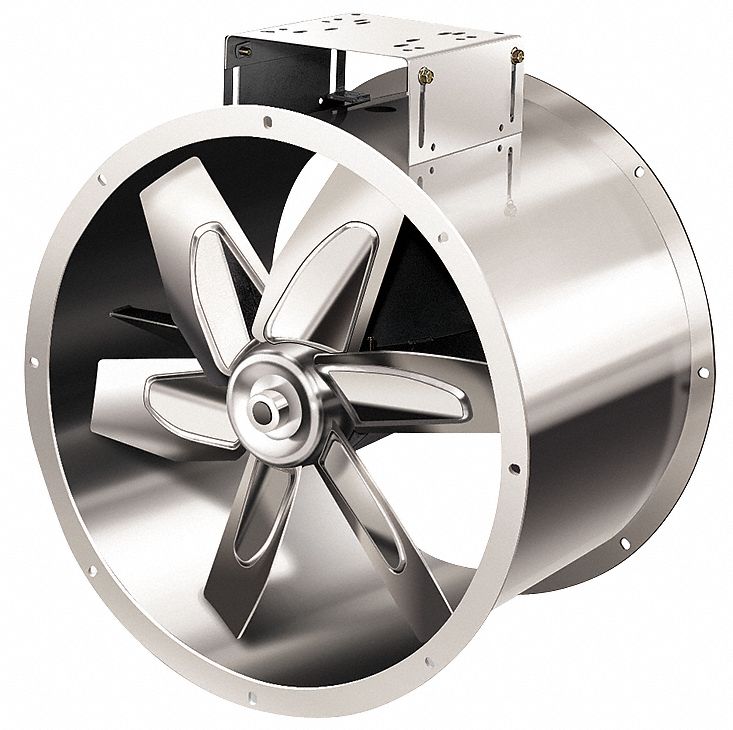

Dayton 3G-OTH-78747 — Technical Specifications

Name: Dayton 3G-OTH-78747 DAYTON Tubeaxial Fan: Corrosive Vapor, 24 in Blade, 7,925 cfm @ 0.000 in SP, 115/208-230V AC (MPN 7AG46). Key specifications — Brand: DAYTON; Includes Drive Package: Yes; Assembly: Unassembled; Nameplate Voltage: 115/208-230V AC; Mounting Orientation: Horizontal; Hazardous Location Specification: Not Rated; Motor Enclosure: Totally Enclosed Fan Cooled; Motor Type: Capacitor-Start Capacitor-Run.
Brand: Dayton

The DAYTON Tubeaxial Fan: Corrosive Vapor (SKU 7AG46) is an unassembled belt-drive fan with drive, featuring a 24-inch blade and airflow of 7,925 cfm at 0.000 in SP. It operates on 115/208-230V AC with a single-speed, capacitor-start capacitor-run motor in a totally enclosed fan-cooled enclosure. This horizontal-mount unit is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
AC	115/208-230V
Type	7,925 cfm @ 0.000 in SP
Blade	24 in
Brand	DAYTON
Assembly	Unassembled
Motor Type	Capacitor-Start Capacitor-Run
Motor Enclosure	Totally Enclosed Fan Cooled
Number Of Speeds	1
Nameplate Voltage	115/208-230V AC
Mounting Orientation	Horizontal
Includes Drive Package	Yes
Manufacturer Part Number	7AG46
Airflow @ 0.000 In SP - Range	0 to 9,999 cfm
Hazardous Location Specification	Not Rated
