Dayton 3G-OTH-78690 — Technical Specifications

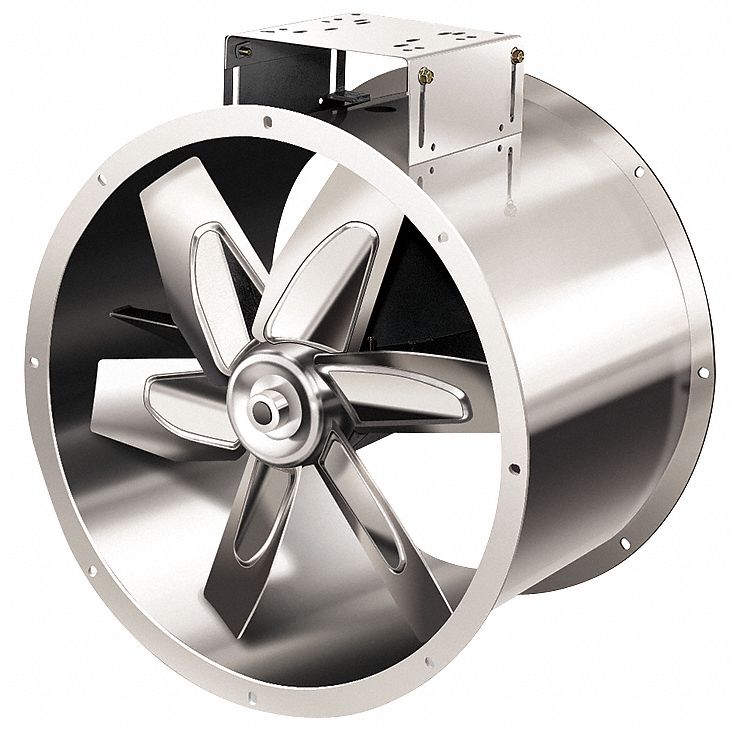

The DAYTON Tubeaxial Fan: Corrosive Vapor (SKU 7AG36) is an unassembled belt-drive fan with drive, featuring a 24-inch blade and a capacitor-start, totally enclosed fan-cooled motor. It delivers 6,470 cfm at 0.000 in SP with a nameplate voltage of 115/208-230V AC and a 3/4 hp motor, designed for horizontal mounting. This unit is not rated for hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 115/208-230V |
| Type | 6,470 cfm @ 0.000 in SP, 3/4 hp |
| Blade | 24 in |
| Brand | DAYTON |
| Assembly | Unassembled |
| Motor Type | Capacitor-Start |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Number Of Speeds | 1 |
| Nameplate Voltage | 115/208-230V AC |
| Mounting Orientation | Horizontal |
| Includes Drive Package | Yes |
| Manufacturer Part Number | 7AG36 |
| Airflow @ 0.000 In SP - Range | 0 to 9,999 cfm |
| Hazardous Location Specification | Not Rated |
