Dayton 3G-OTH-81626 — Technical Specifications

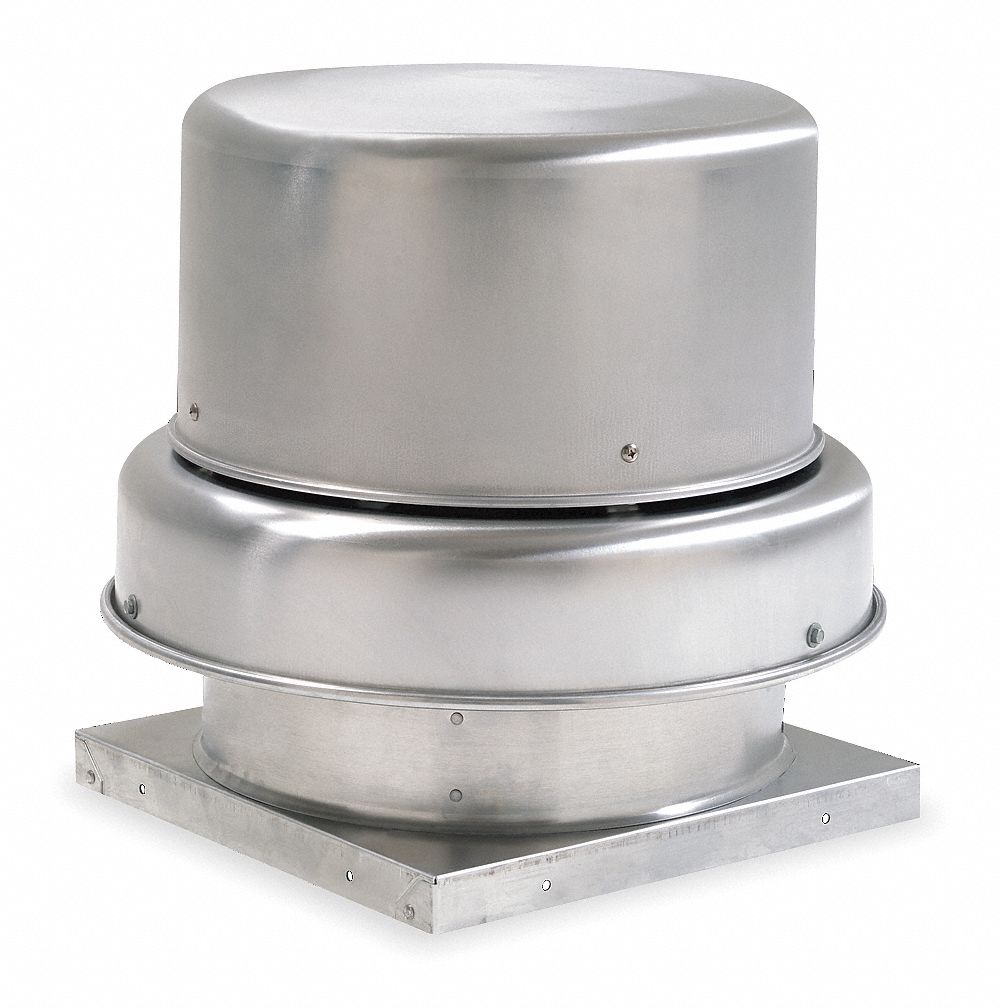

The Dayton Centrifugal Downblast Roof Exhaust Fan is a flammable vapor belt-drive fan with drive, designed for roof mounting. It features a 24 1/2 in wheel, delivers 6,060 cfm, and operates on 230/460V AC with a totally enclosed fan cooled motor. This unassembled unit includes a drive package and is rated for hazardous locations: Class I Groups C & D, Class II Groups E, F & G.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 6,060 cfm |
| Brand | DAYTON |
| Wheel | 24 1/2 in |
| Assembly | Unassembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | 7AF22 |
| Hazardous Location Rating | Class I Groups C & D, Class II Groups E, F & G |
| Hazardous Location Specification | Class I Group C, Class I Group D, Class II Group E, Class II Group F, Class II Group G |
| Exhaust Airflow @ 0.000 In SP - Range | 5,000 to 10,000 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | No |
