Dayton 3G-OTH-81703 — Technical Specifications

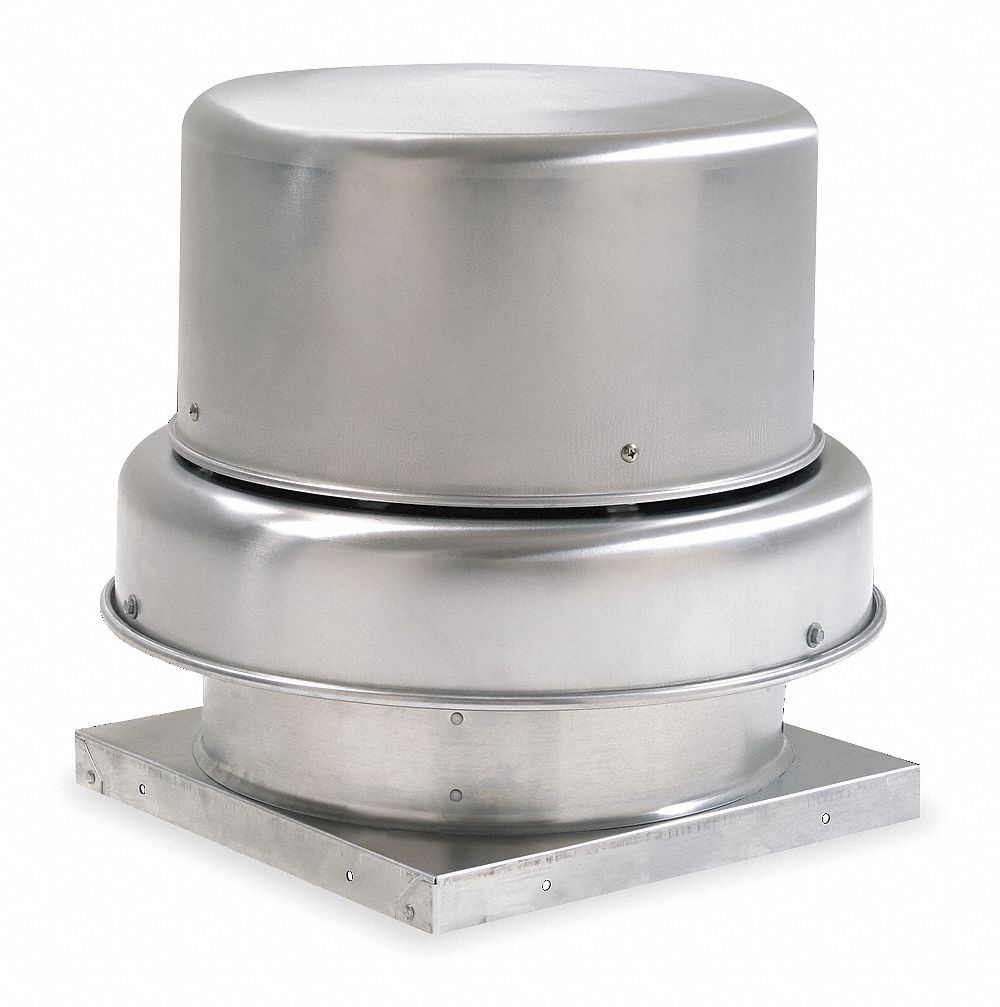

The Dayton Centrifugal Downblast Roof Exhaust Fan is a flammable vapor belt-drive fan with drive, model 7AF05. It is unassembled with a square base, includes a drive package, and features a totally enclosed fan-cooled standard-efficiency motor with 1 speed at 115/208-230V AC. Rated for hazardous locations Class I Groups C & D and Class II Groups E & F, it delivers exhaust airflow from 5,000 to 10,000 cfm at 0.000 in SP and 0.500 in SP.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 7,694 cfm |
| Brand | DAYTON |
| Wheel | 30 1/2 in |
| Assembly | Unassembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof |
| Nameplate Voltage | 115/208-230V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | 7AF05 |
| Hazardous Location Rating | Class I Groups C & D, Class II Groups E & F |
| Hazardous Location Specification | Class I Group C, Class I Group D, Class II Group E, Class II Group F, Class II Group F |
| Exhaust Airflow @ 0.000 In SP - Range | 5,000 to 10,000 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 5,000 to 10,000 cfm |
| For High-Static Pressure Applications | No |
