Dayton 3G-OTH-79622 — Technical Specifications

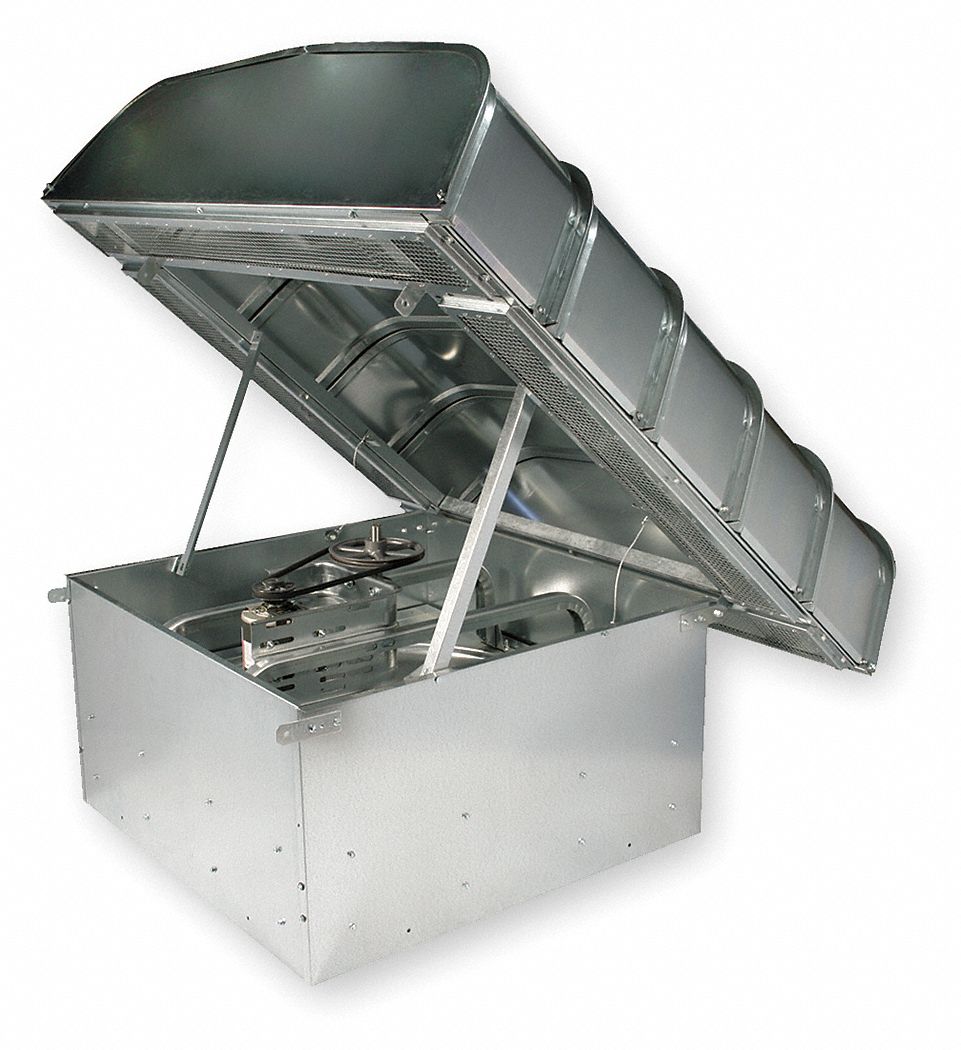

The Dayton Axial Downblast Roof Exhaust Fan (SKU 7AD80) is a belt-drive, clean-air fan designed for large facilities. It features a 54-inch blade, delivers exhaust airflow of 18,680 cfm at 0.000 in SP, and includes a drive package. The fan is unassembled, has a square base, a totally enclosed fan-cooled motor with standard efficiency, and operates on 115/208-230V AC at a single speed.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Includes Drive Pack, 18,680 cfm, TEFC, 1 |
| Blade | 54 in |
| Brand | DAYTON |
| Assembly | Unassembled |
| Base Shape | Square |
| Application | Large Facilities |
| For Air Type | Clean Air |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof |
| Nameplate Voltage | 115/208-230V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | 7AD80 |
| Motor Enclosure Design Broad | Totally Enclosed Motor |
| Exhaust Airflow @ 0.000 In SP - Range | More than 15,000 cfm |
