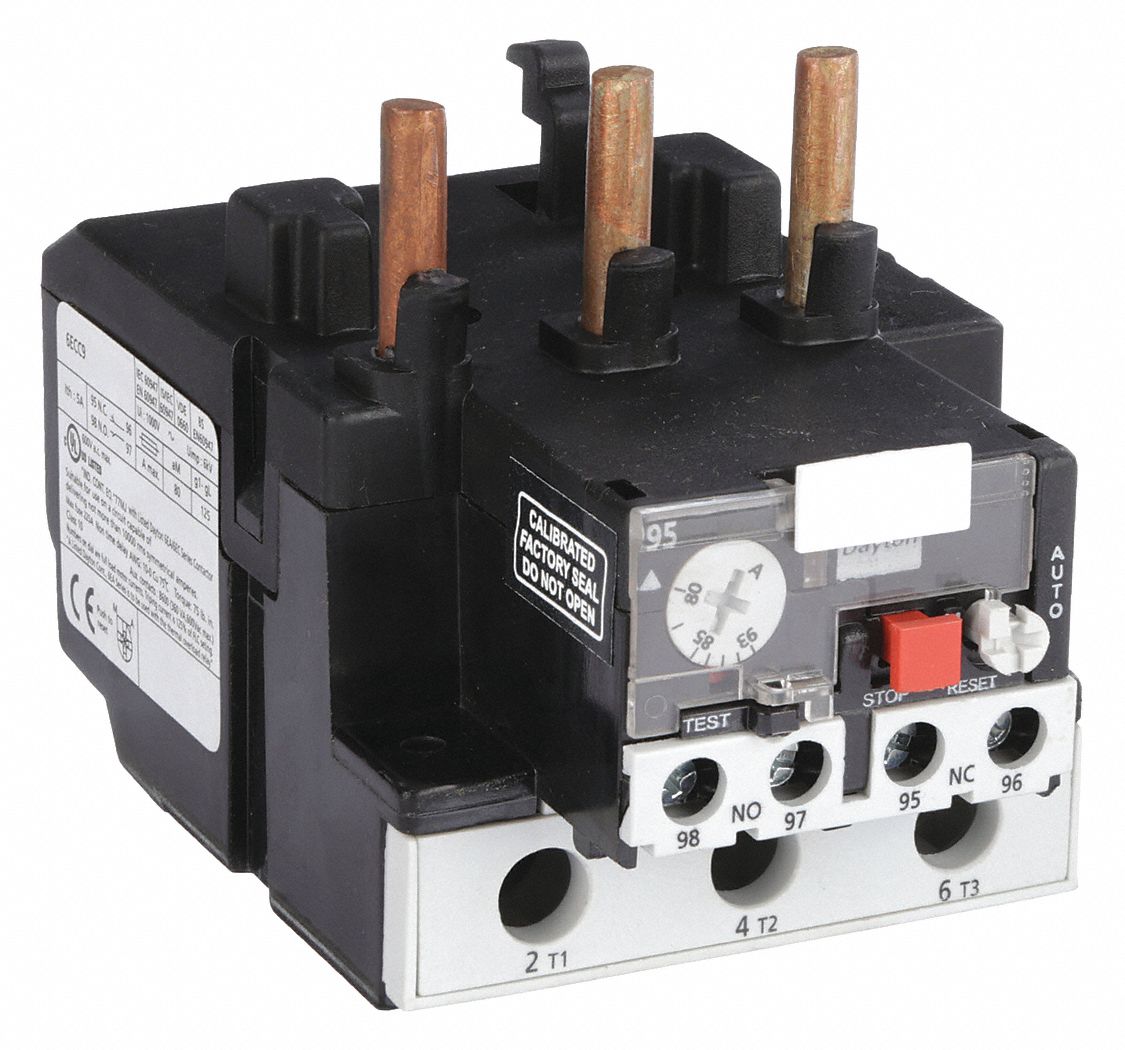

Dayton 3G-OTH-42432 — Technical Specifications
The DAYTON Overload Relay (SKU 6ECC9) is an IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts and phase loss sensitivity, and is compatible with Dayton contactors in the 40 to 95 Amp models. The relay is rated for 80 A to 93 A and has 3 poles.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity, 80 A – 93 A |
| Brand | DAYTON |
| Poles | 3 |
| Compatible Contactors | Dayton (40 to 95 Amp Models) |
| Auxiliary Contact Form | 1NO/1NC |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | 6ECC9 |
