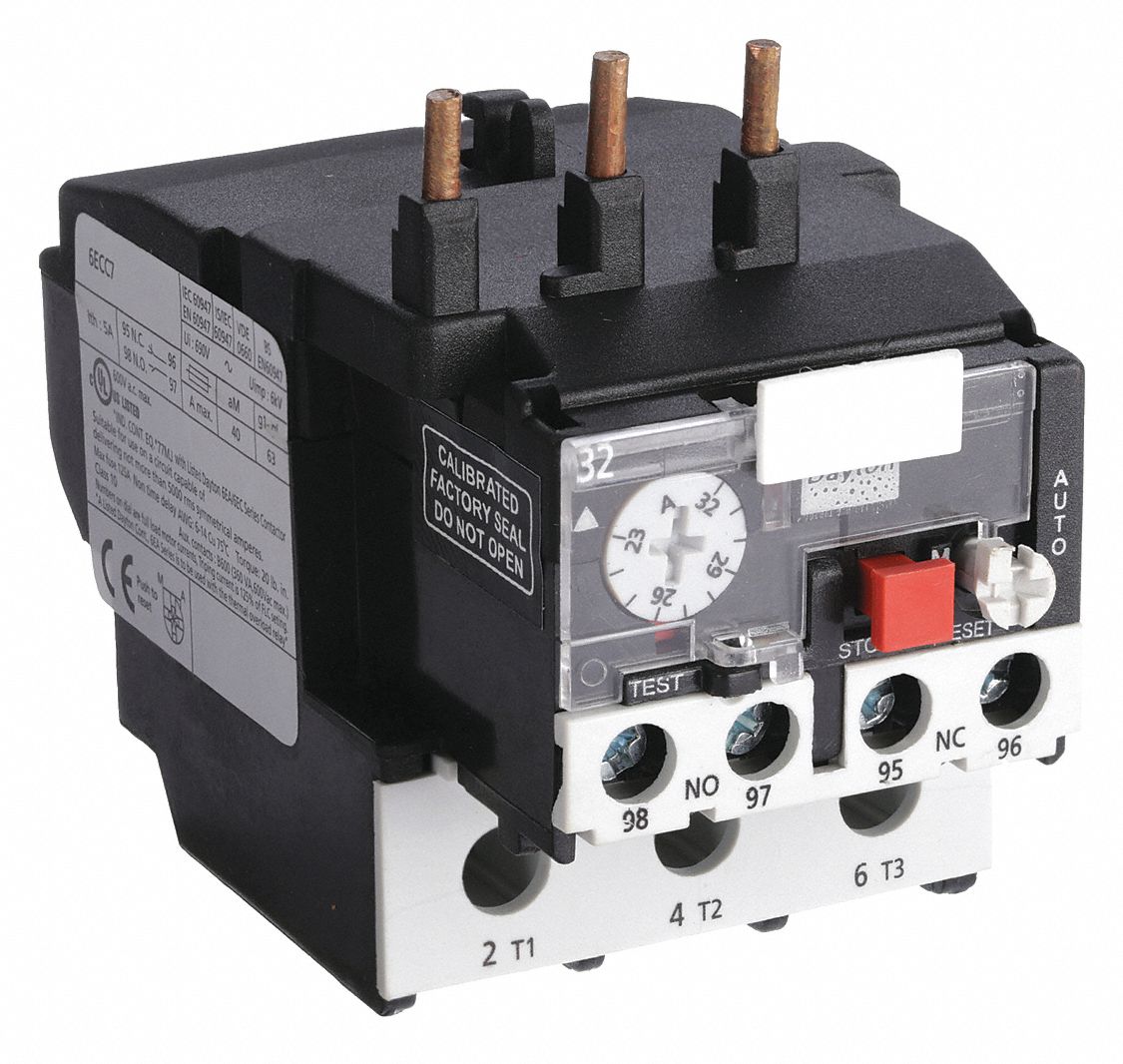

Dayton 3G-OTH-40898 — Technical Specifications
The DAYTON Overload Relay (MPN 6ECC7) is a 3-pole IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts and phase loss sensitivity, and is compatible with Dayton contactors rated 25 to 32 Amps. The relay provides thermal protection for motors within a 23 A to 32 A adjustment range.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity, 23 A – 32 A |
| Brand | DAYTON |
| Poles | 3 |
| Compatible Contactors | Dayton (25 to 32 Amps Models) |
| Auxiliary Contact Form | 1NO/1NC |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | 6ECC7 |
