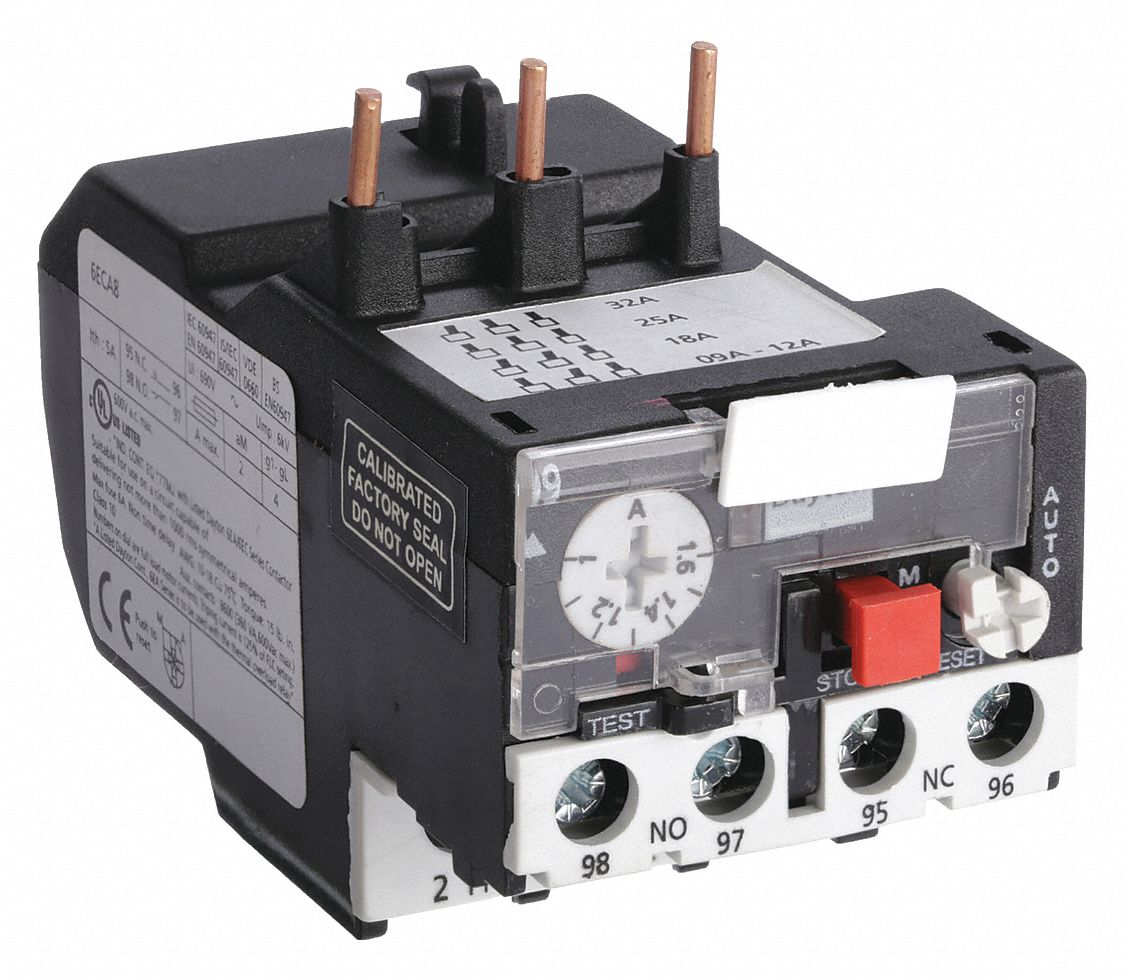

Dayton 3G-OTH-40170 — Technical Specifications

Name: Dayton 3G-OTH-40170 DAYTON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, 1 A – 1.6 A (MPN 6ECA8). Key specifications — Brand: DAYTON; Auxiliary Contact Form: 1NO/1NC; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: Dayton (9 to 18 Amp Models).
Brand: Dayton

The DAYTON Overload Relay (MPN 6ECA8) is an IEC thermal overload relay with integrated bimetallic elements, providing phase loss sensitivity and a 1NO/1NC auxiliary contact form. It is compatible with Dayton contactors in the 9 to 18 Amp models and covers a current range of 1 A to 1.6 A across three poles.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1NO/1NC, Phase Loss Sensitivity, 1 A – 1.6 A
Brand	DAYTON
Poles	3
Compatible Contactors	Dayton (9 to 18 Amp Models)
Auxiliary Contact Form	1NO/1NC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	6ECA8
