Dayton 3G-OTH-22344 — Technical Specifications

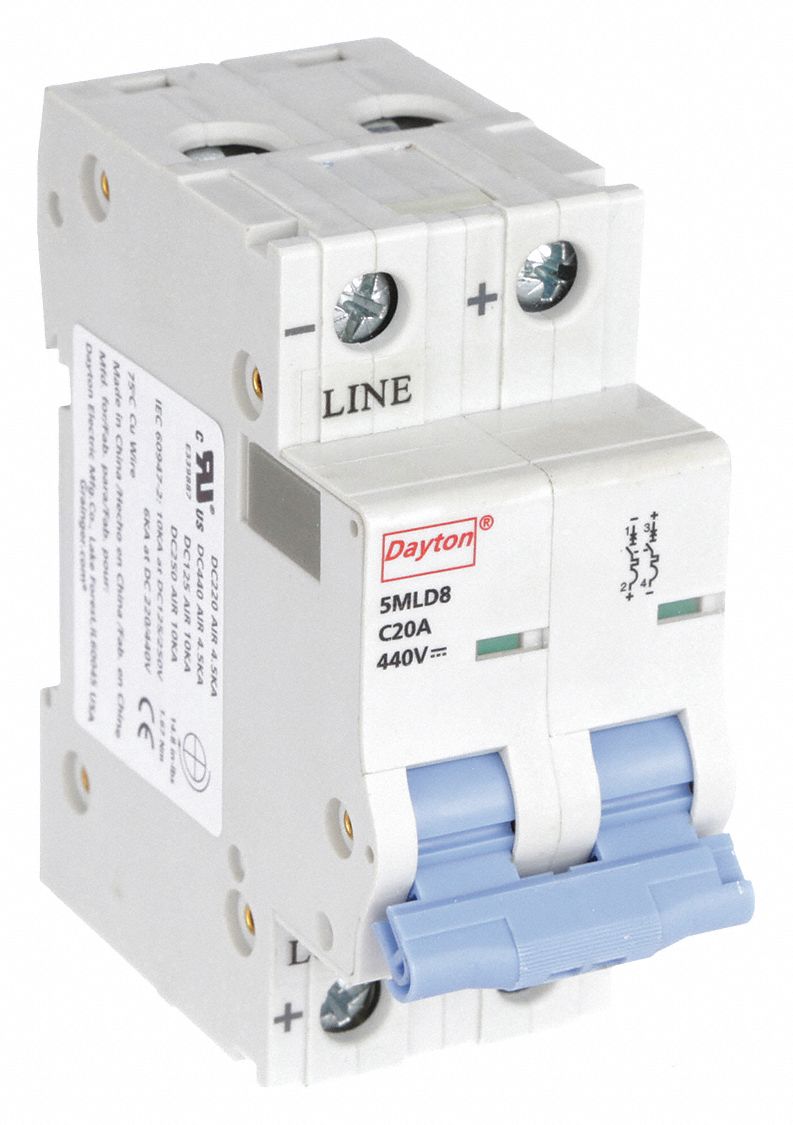

The DAYTON IEC Supplementary Protector (SKU 5MLD8) is a DC-only rated, 2-pole UL1077 DIN rail-mount supplementary protector from the NDB2Z-63 C20/2 series. It is rated for 20 A amps with a C curve type, a DC voltage rating of 440V DC, and a maximum AIR rating of 10kA at 440V DC. The unit features screw clamp terminals and is not rated for AC voltage.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 440V |
| Type | 10kA at 440V DC, Screw Clamp, NDB2Z-63 C20/2 |
| Brand | DAYTON |
| Series | NDB2Z-63 C20/2 |
| Curve Type | C |
| Max. AIR Rating | 10kA at 440V DC |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 440V DC |
| Terminal Connection | Screw Clamp |
| Manufacturer Part Number | 5MLD8 |
