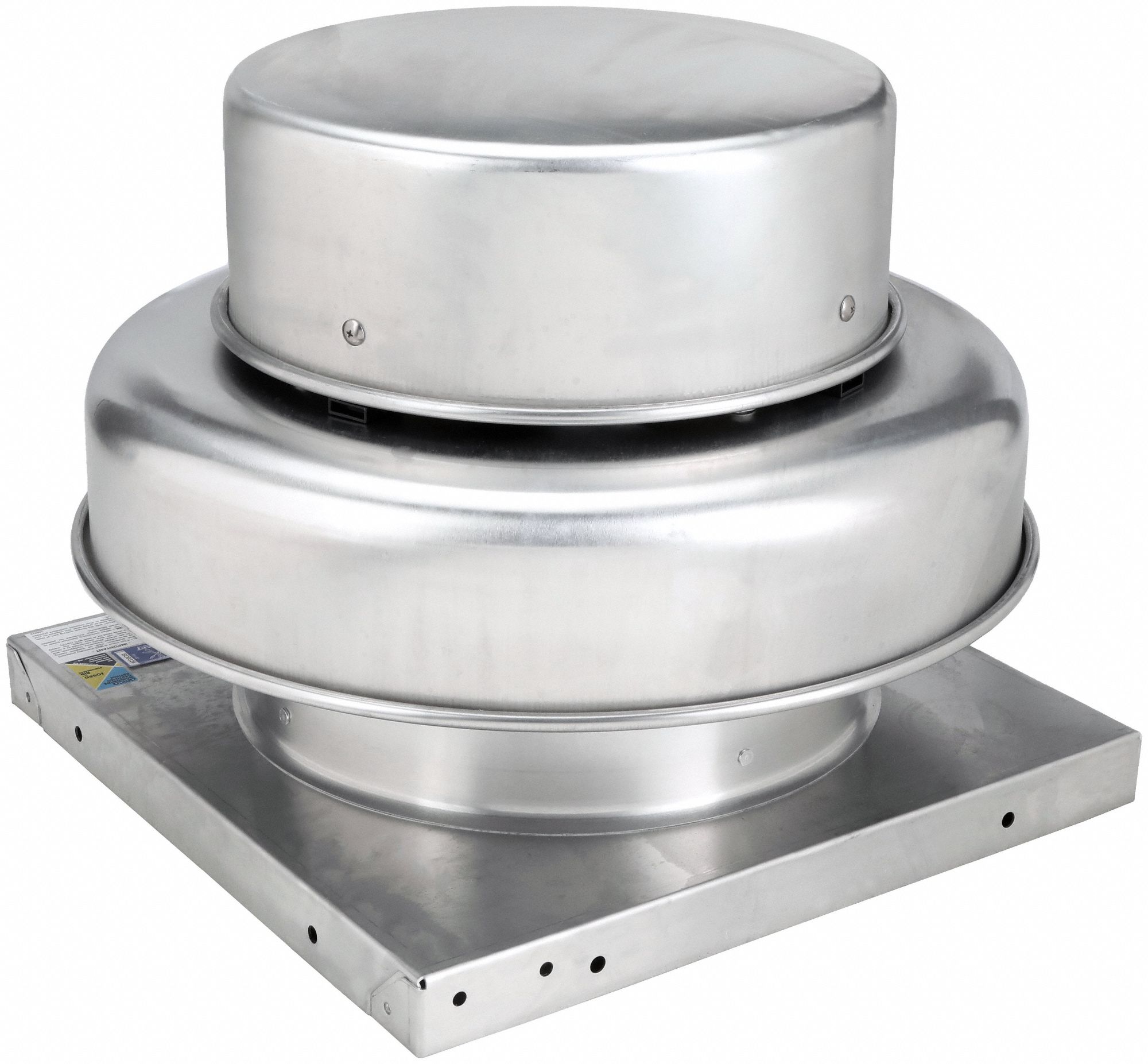

Dayton 3G-OTH-78784 — Technical Specifications

Name: Dayton 3G-OTH-78784 Centrifugal Downblast Roof Exhaust Fan: Direct Drive, Includes Drive Pack, 8 in Wheel, 495 cfm, 1 (MPN 5DVR7). Key specifications — Motor Type: Shaded Pole; Assembly: Assembled; Base Shape: Square; Brand: DAYTON; High-Efficiency Motor: No; For High-Static Pressure Applications: No; Motor Enclosure: Open Air Over; Mounting Location: Roof.
Brand: Dayton

The Dayton Centrifugal Downblast Roof Exhaust Fan (SKU 5DVR7) is a direct-drive, assembled clean air fan with a square base and an 8-inch wheel. It features a shaded-pole motor with an open-air-over enclosure, operates at 115V AC, and offers three speeds. The unit includes a drive package and delivers exhaust airflow up to 1,999 cfm at 0.000 in SP and 0.500 in SP, though it is not designed for high-static-pressure applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Includes Drive Pack, 495 cfm, 1
Brand	DAYTON
Wheel	8 in
Assembly	Assembled
Base Shape	Square
Motor Type	Shaded Pole
Drive Package	Includes Drive Package
Motor Enclosure	Open Air Over
Motor Efficiency	Standard-Efficiency Motors
Number Of Speeds	3
Mounting Location	Roof
Nameplate Voltage	115V AC
High-Efficiency Motor	No
Manufacturer Part Number	5DVR7
Exhaust Airflow @ 0.000 In SP - Range	0 to 1,999 cfm
Exhaust Airflow @ 0.500 In SP - Range	0 to 1,999 cfm
For High-Static Pressure Applications	No
