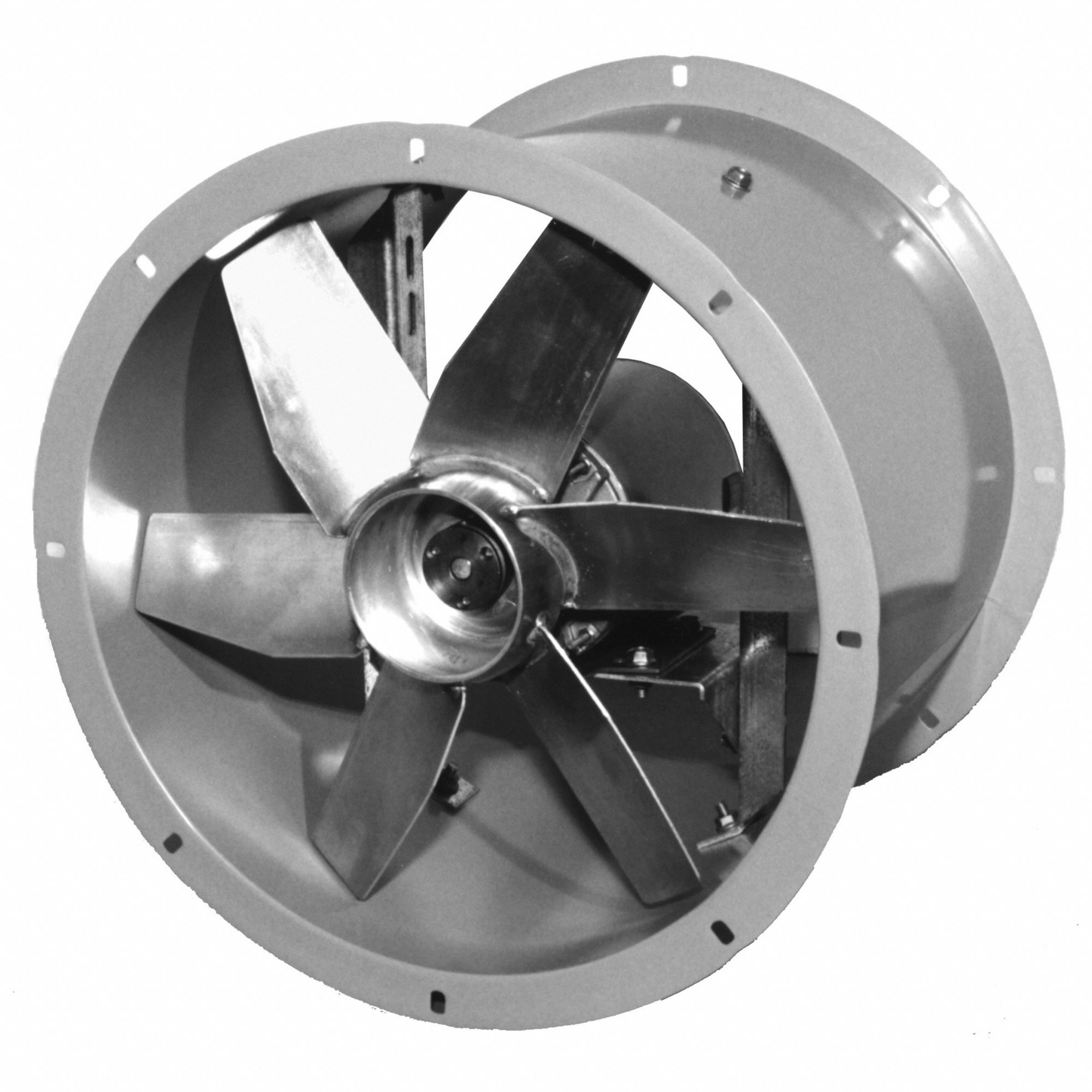

Dayton 3G-OTH-77382 — Technical Specifications

Name: Dayton 3G-OTH-77382 DAYTON Tubeaxial Fan: Clean Air, 24 in Blade, 8,555 cfm @ 0.000 in SP, 200-230/460V AC, 3 Phase (MPN 166005A). Key specifications — Brand: DAYTON; Includes Drive Package: Yes; Assembly: Assembled; Nameplate Voltage: 200-230/460V AC; Mounting Orientation: Vertical; Motor Enclosure: Totally Enclosed Air Over; Motor Type: 3-Phase; Number of Speeds: 1.
Brand: Dayton

The DAYTON Tubeaxial Fan: Clean Air (SKU 4TM85, MPN 166005A) is a clean air direct-drive fan with a 24-inch blade, delivering 8,555 cfm at 0.000 in SP. It features a 1-speed, 3-phase motor with a Totally Enclosed Air Over enclosure, rated at 200-230/460V AC. The unit is assembled, includes a drive package, and is designed for vertical mounting.

View Product & Quote

Technical Specifications

Parameter	Value
AC	200-230/460V
Type	8,555 cfm @ 0.000 in SP
Blade	24 in
Brand	DAYTON
Phase	3
Assembly	Assembled
Motor Type	3-Phase
Motor Enclosure	Totally Enclosed Air Over
Number Of Speeds	1
Nameplate Voltage	200-230/460V AC
Mounting Orientation	Vertical
Includes Drive Package	Yes
Manufacturer Part Number	166005A
Airflow @ 0.000 In SP - Range	0 to 9,999 cfm
