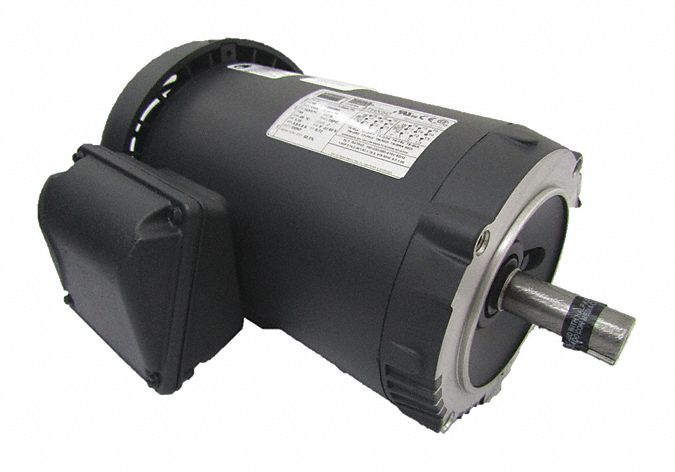

Dayton 3G-OTH-60658 — Technical Specifications
The DAYTON General Purpose Motor (SKU 4THX5) is a C-Face 3-Phase AC motor with a TEFC enclosure. It operates at 1,140 RPM and 1 hp, with a nameplate voltage of 230/460V AC and full load current of 3.2 / 1.6 A at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Fan Cooled, 1 hp |
| Brand | DAYTON |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,140 RPM |
| Manufacturer Part Number | 4THX5 |
| Full Load Current @ 60 Hz | 3.2 / 1.6 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
