Dayton 3G-OTH-70702 — Technical Specifications

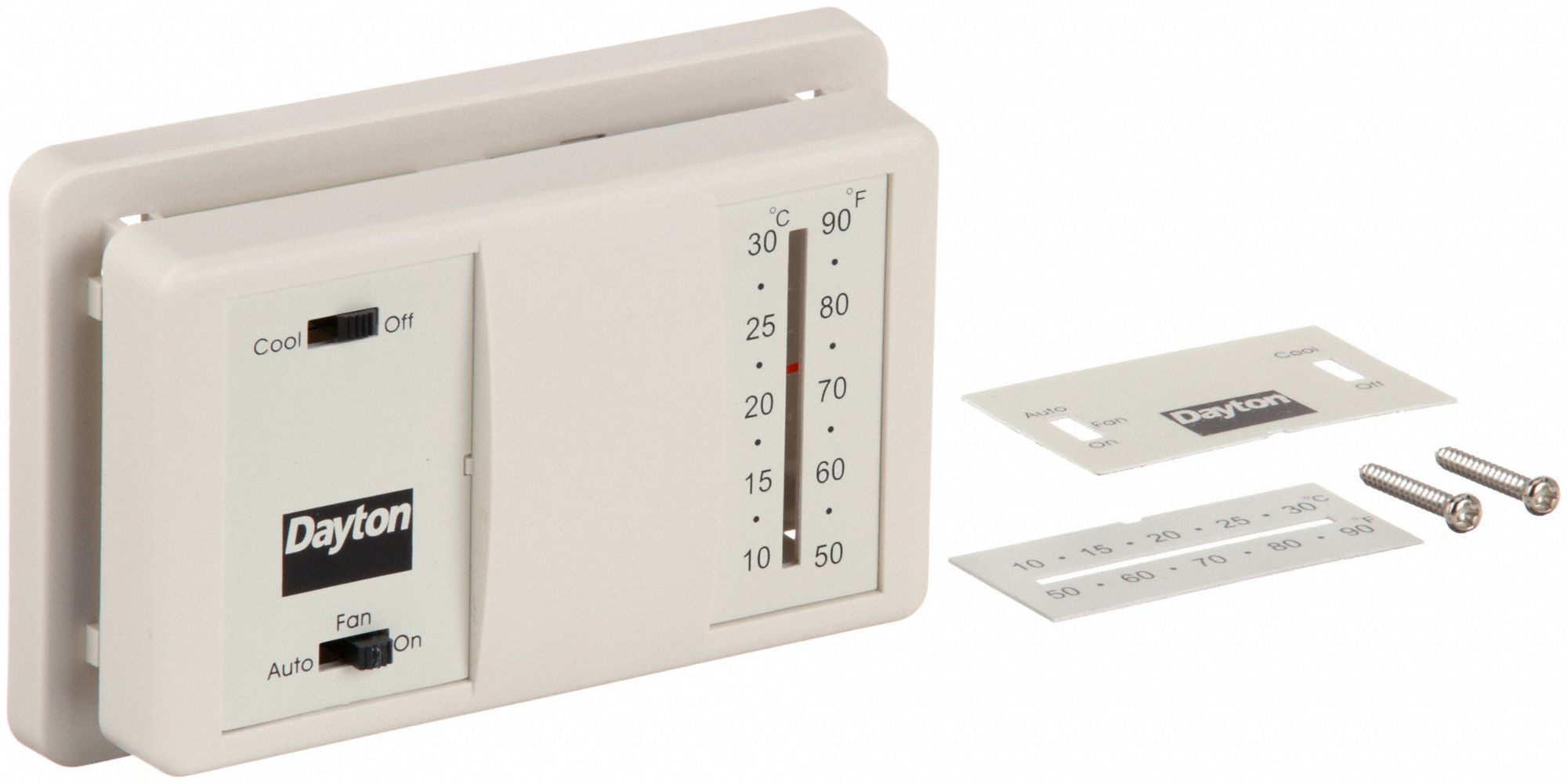

The DAYTON Low Voltage Thermostat is a cool-only analog thermostat with a rectangular shape. It operates on 20 to 30V AC and features a slide switch control with fan settings of Auto-On and system settings of On-Off. The thermostat has a temperature control range of 50° to 90°F and a temperature differential of 2 to 3°F, with terminal designation G.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | G/R/Terminal Designations, Auto-On, On-Off, On-Off/Auto-On |
| Brand | DAYTON |
| Shape | Rectangle |
| Voltage | 20 to 30V AC |
| Digit Size | Standard |
| Application | Cool Only |
| Control Type | Slide Switch |
| Fan Settings | Auto-On |
| System Settings | On-Off |
| Mounting Direction | Horizontal |
| Terminal Designations | G |
| Manufacturer Part Number | 4PU46 |
| Temperature Differential | 2 to 3°F |
| Temperature Control Range | 50° to 90°F |
