Dayton 3G-OTH-94108 — Technical Specifications

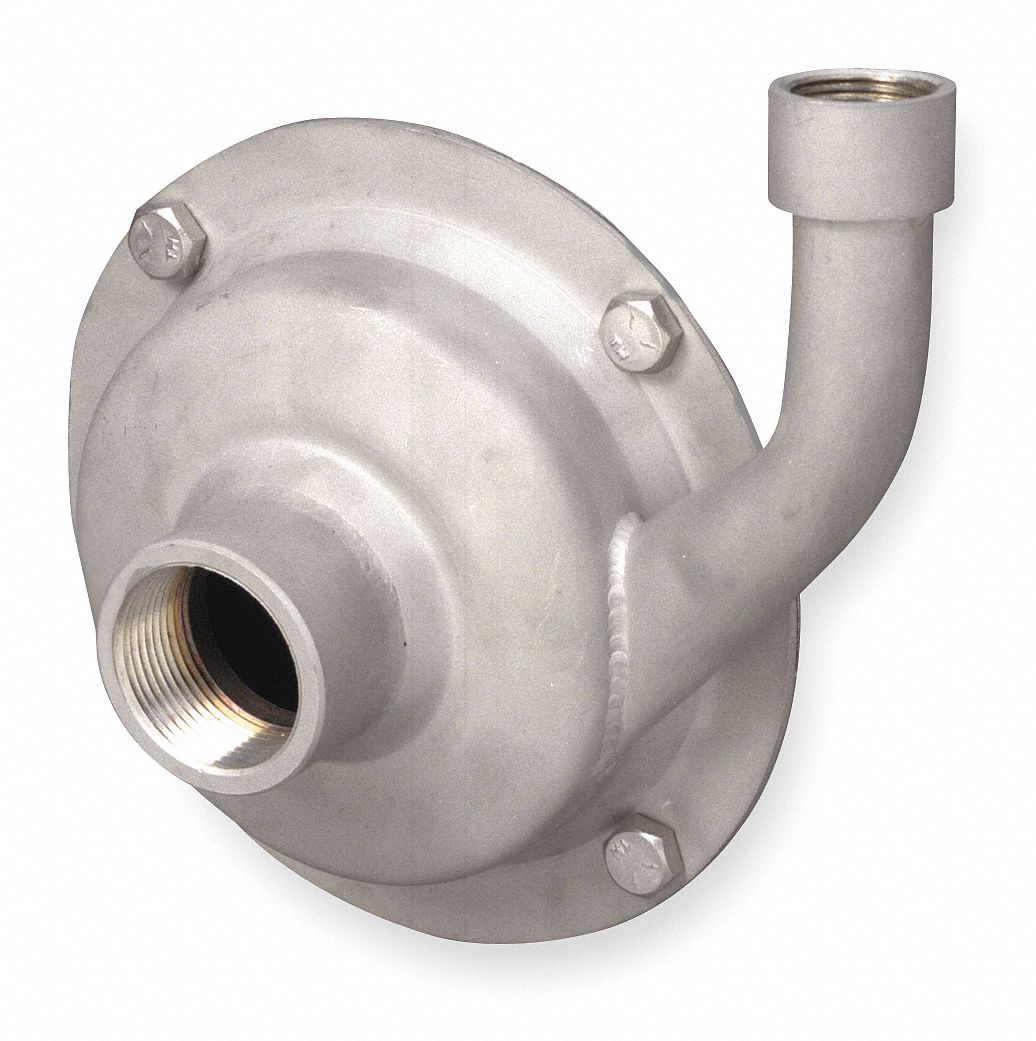

The DAYTON 4JMY5 is a straight centrifugal pump head with a closed impeller, all wetted components—volute, housing, and impeller—made of 304 stainless steel. It features a 360° discharge rotation adjustable in 90° increments and is designed for a 56J NEMA motor frame, supporting up to 1 1/2 hp at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| Freq | 60 Hz |
| NEMA | 56J |
| Brand | DAYTON |
| Impeller Design | Closed |
| Max. Horsepower | 1 1/2 hp |
| Volute Material | 304 Stainless Steel |
| Housing Material | 304 Stainless Steel |
| Impeller Material | 304 Stainless Steel |
| Discharge Rotation | 360° at 90° Increments |
| Compatible Motor Frame | 56J NEMA |
| Manufacturer Part Number | 4JMY5 |
