Dayton 3G-OTH-94082 — Technical Specifications

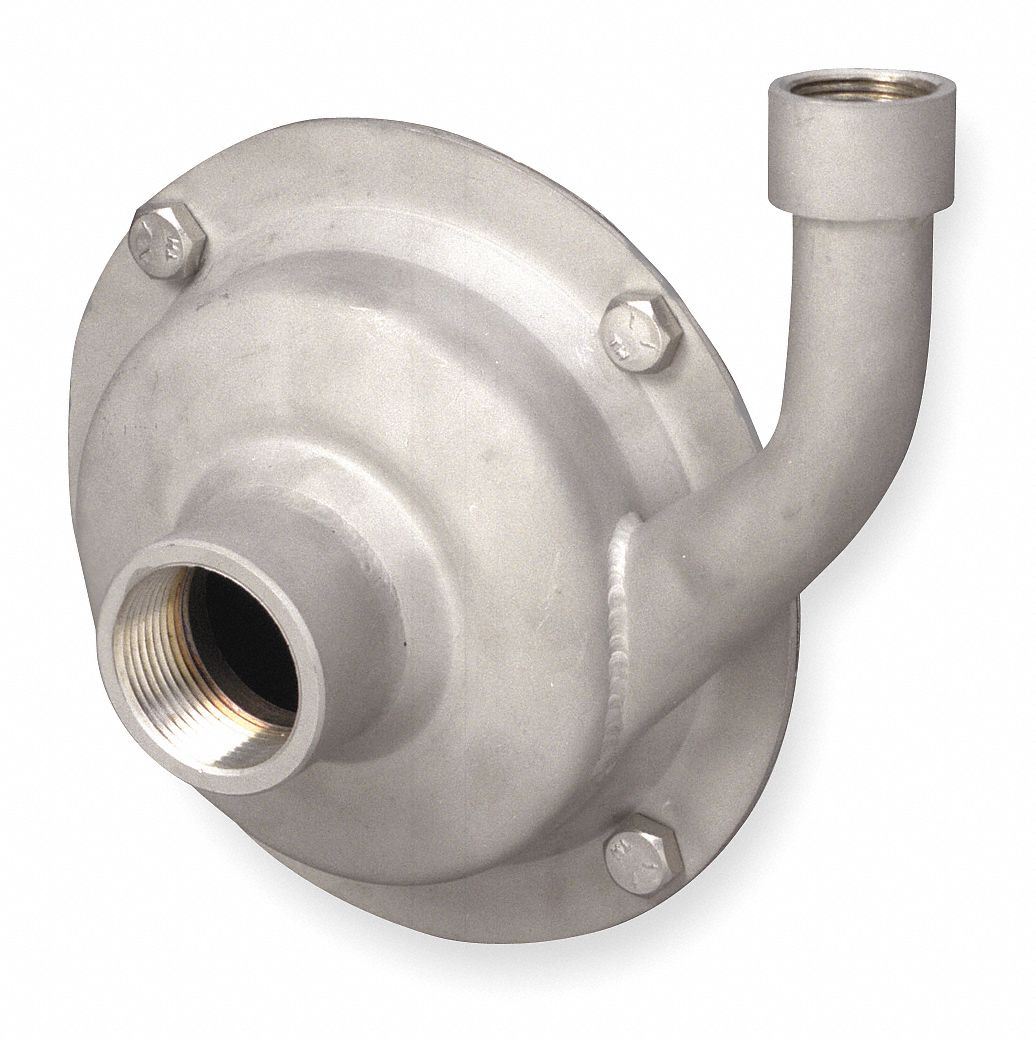

The DAYTON Centrifugal Pump Head (SKU 4JMY4) is a straight centrifugal pump head with a closed impeller, all constructed from 304 Stainless Steel including the volute, housing, and impeller. It features a 360° discharge rotation at 90° increments and is compatible with a 56J NEMA motor frame, supporting up to 1 hp maximum horsepower at 60 Hz with NPT connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Freq | 60 Hz |
| NEMA | 56J |
| Type | NPT |
| Brand | DAYTON |
| Impeller Design | Closed |
| Max. Horsepower | 1 hp |
| Volute Material | 304 Stainless Steel |
| Housing Material | 304 Stainless Steel |
| Impeller Material | 304 Stainless Steel |
| Discharge Rotation | 360° at 90° Increments |
| Compatible Motor Frame | 56J NEMA |
| Manufacturer Part Number | 4JMY4 |
