Dayton 3G-OTH-114212 — Technical Specifications

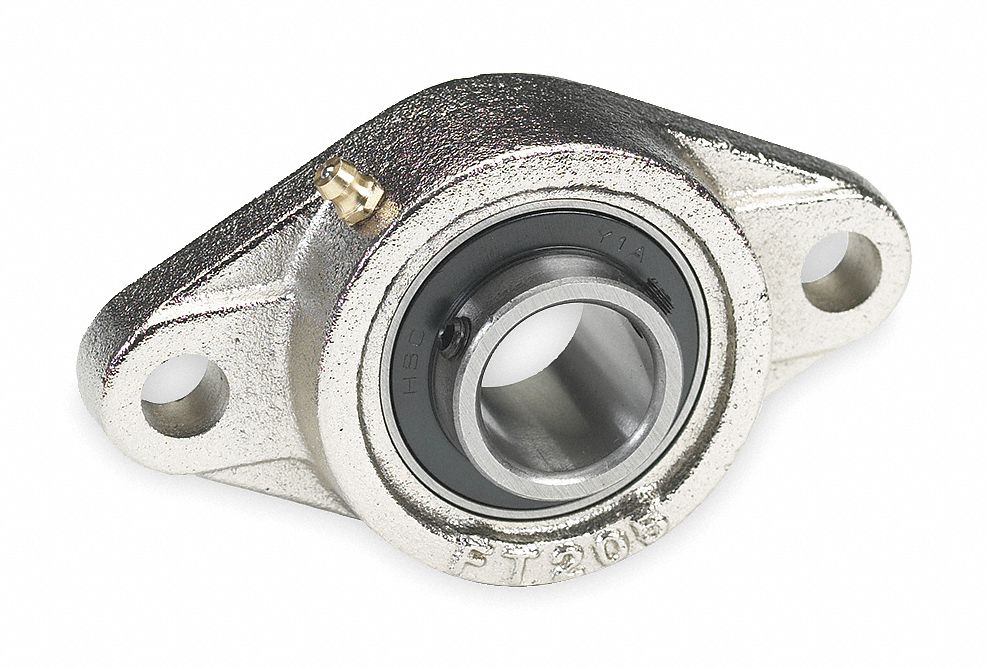

The DAYTON 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 5/8 in cylindrical bore and a cast iron housing. It features set screws for shaft locking, a not-split housing, and is lubricated with Chevron SRI 2. The mounting bolt size is 3/8 in, and the system of measurement is inch.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 4 13/32 in |
| Bore | 5/8 in |
| Type | Cast Iron, Set Screws, 52100 |
| Brand | DAYTON |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | Chevron SRI 2 |
| Mounting Bolt Size | 3/8 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | 3FDD9 |
