Dayton 3G-OTH-76297 — Technical Specifications

Name: Dayton 3G-OTH-76297 23"H-W 5.75"L Alu Wall Backdraft Dampr: For 20 in Fan, Single Panel, 23 in H, 23 in W, 2 1/2 in D (MPN 1C745). Key specifications — Airflow Direction: Horizontal; Blade Type: Flat Blade; Brand: DAYTON; Maximum Air Velocity: 2500 fpm; Mounting Position: Vertical.
Brand: Dayton

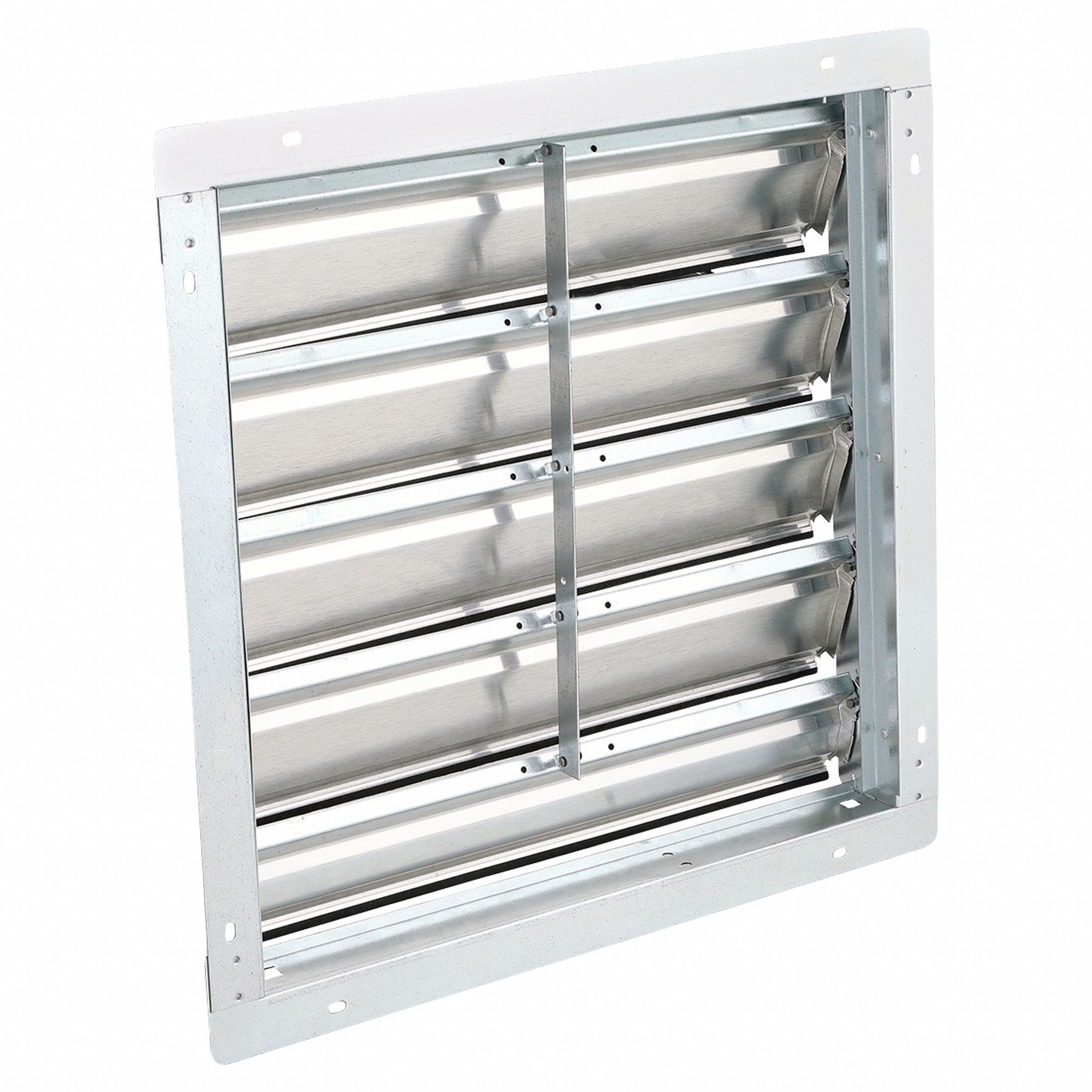

The Dayton 1C745 is a wall-mount backdraft damper designed for use with a 20-inch fan. It features a single-panel, flat blade construction with a horizontal airflow direction and vertical mounting position. The damper measures 23 inches in height, 23 inches in width, and 2.5 inches in depth, with a maximum air velocity of 2500 fpm.

View Product & Quote

Technical Specifications

Parameter	Value
D	2 1/2 in
H	23 in
Type	Single Panel, 23 in W
Brand	DAYTON
Blade Type	Flat Blade
Airflow Direction	Horizontal
Mounting Position	Vertical
Maximum Air Velocity	2500 fpm
Manufacturer Part Number	1C745
