Dayton 3G-OTH-78769 — Technical Specifications

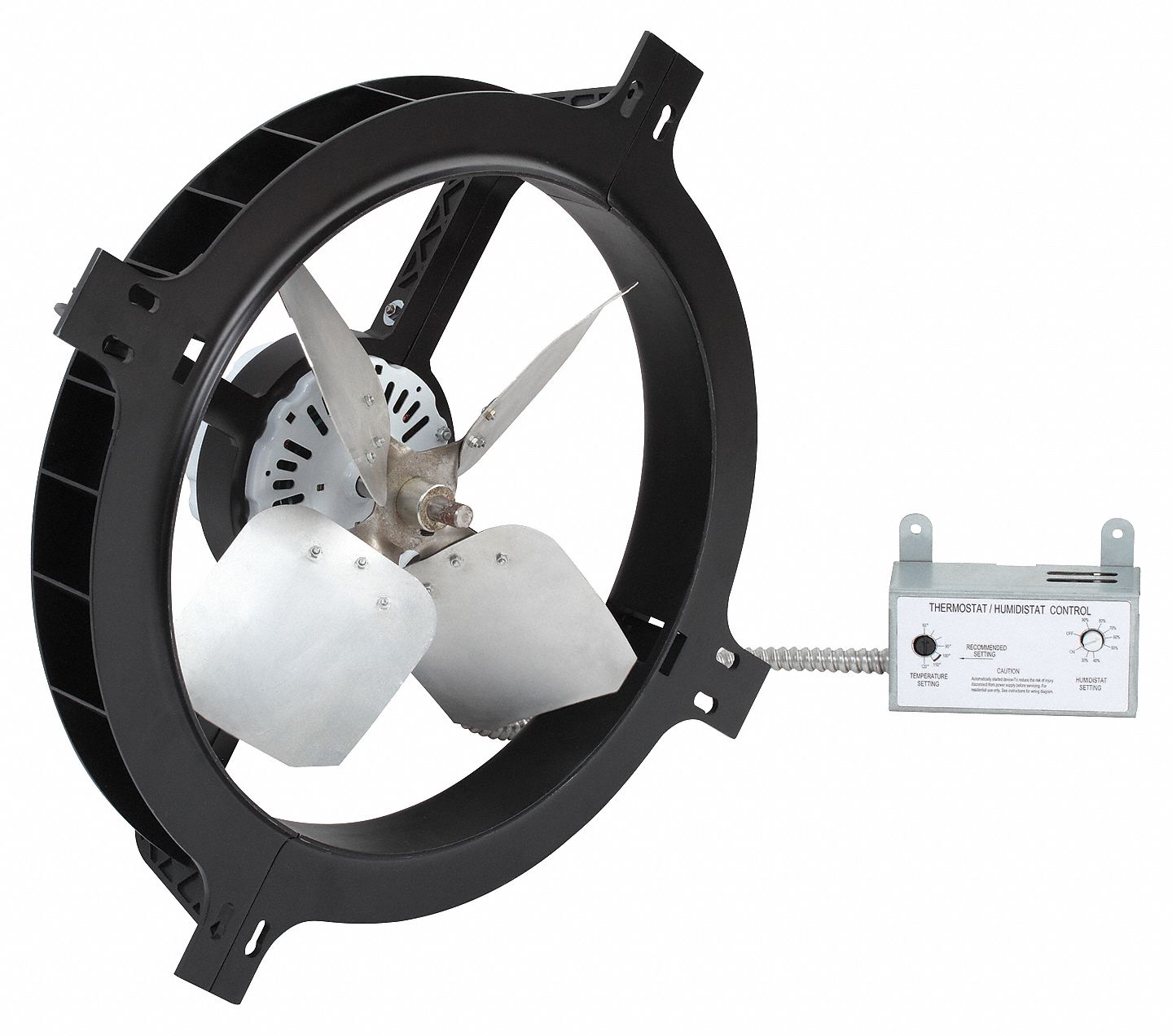

The Dayton 10W195 is a gable-mount attic exhaust fan with a standard-efficiency electric motor. It operates on 120V AC, draws 4 A, and delivers exhaust airflow in the 1,500 to 2,000 cfm range (max. 1,650 cfm for up to 2,300 sq ft attic). The unit includes mounting brackets, a thermostat, and a humidistat for temperature and humidity control; it does not include a shutter or fire safety shut-off.
Technical Specifications
| Parameter | Value |
|---|---|
| Max | 1,650 cfm |
| Type | Electric Motor, Max. 2,300 sq ft Attic |
| Brand | DAYTON |
| Current | 4 A |
| Features | Temperature & Humidity Control |
| Includes | Mounting Brackets |
| Includes Shutter | No |
| Mounting Location | Gable |
| Nameplate Voltage | 120V AC |
| Includes Humidistat | Yes |
| Includes Thermostat | Yes |
| Fire Safety Shut-Off | No |
| High-Efficiency Motor | No |
| Manufacturer Part Number | 10W195 |
| Power Source/High-Efficiency Motors | Standard-Efficiency Motor |
| Exhaust Airflow @ 0.000 In SP - Range | 1,500 to 2,000 cfm |
| For High-Static Pressure Applications | No |
