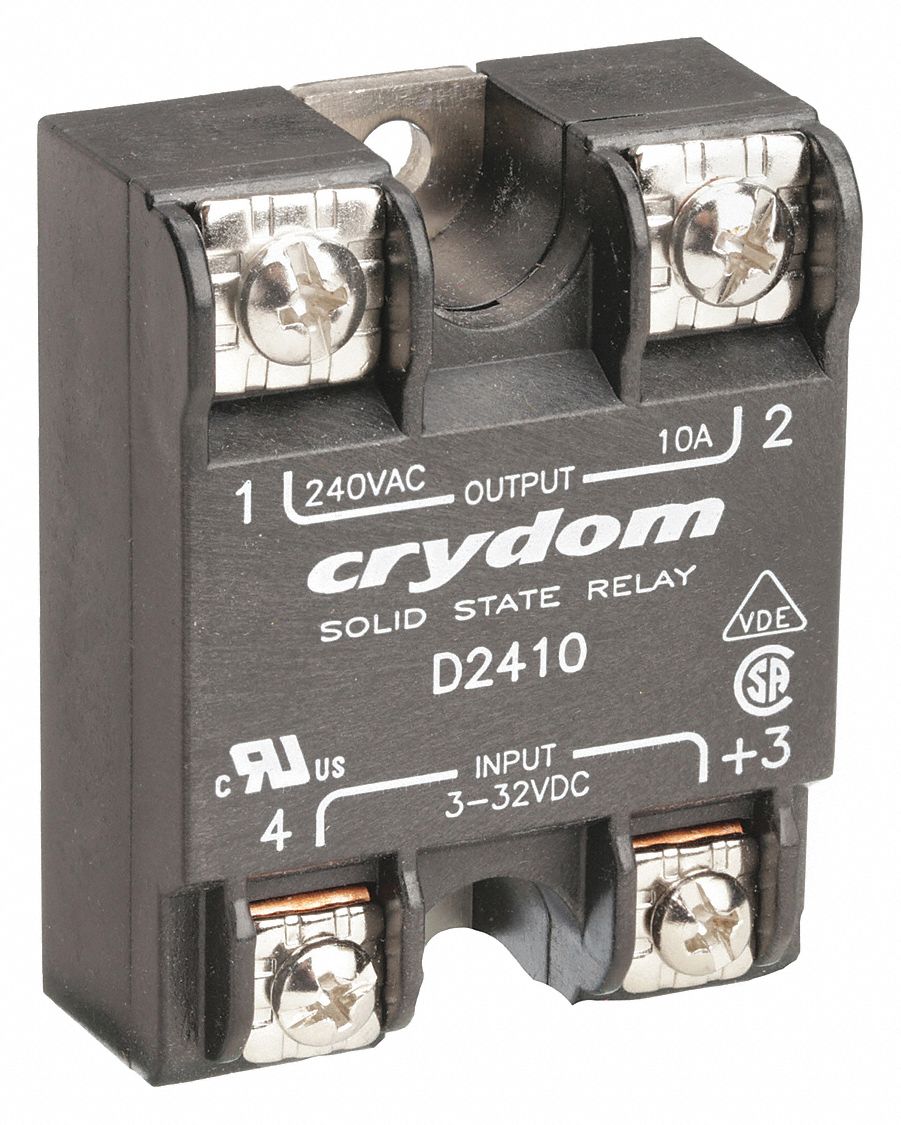

Crydom 3G-OTH-37590 — Technical Specifications

Name: Crydom 3G-OTH-37590 CRYDOM Solid State Relay: Surface Mounted, 10 A Max Output Current, SCR, AC Output (MPN D2410). Key specifications — Brand: CRYDOM; Current Type: AC; Electrical Connection: Screw Clamp; Finger Safe: No; Input Current: 12 mA; Maximum Output Current without Heat Sink: 5 A; Mounting Style: Panel; Output Voltage: 24 to 280V AC.
Brand: Crydom

The CRYDOM D2410 is a panel-mounted, AC-output solid-state relay with a Form A (SPST-NO) switch configuration. It accepts a 12 mA input current and switches an output voltage of 24 to 280V AC via screw-clamp terminals. Without a heat sink, the maximum output current is 5 A; the relay is not finger-safe.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	No
Current Type	AC
Input Current	12 mA
Mounting Style	Panel
Output Voltage	24 to 280V AC
Max Output Current	10 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	D2410
Maximum Output Current Without Heat Sink	5 A
