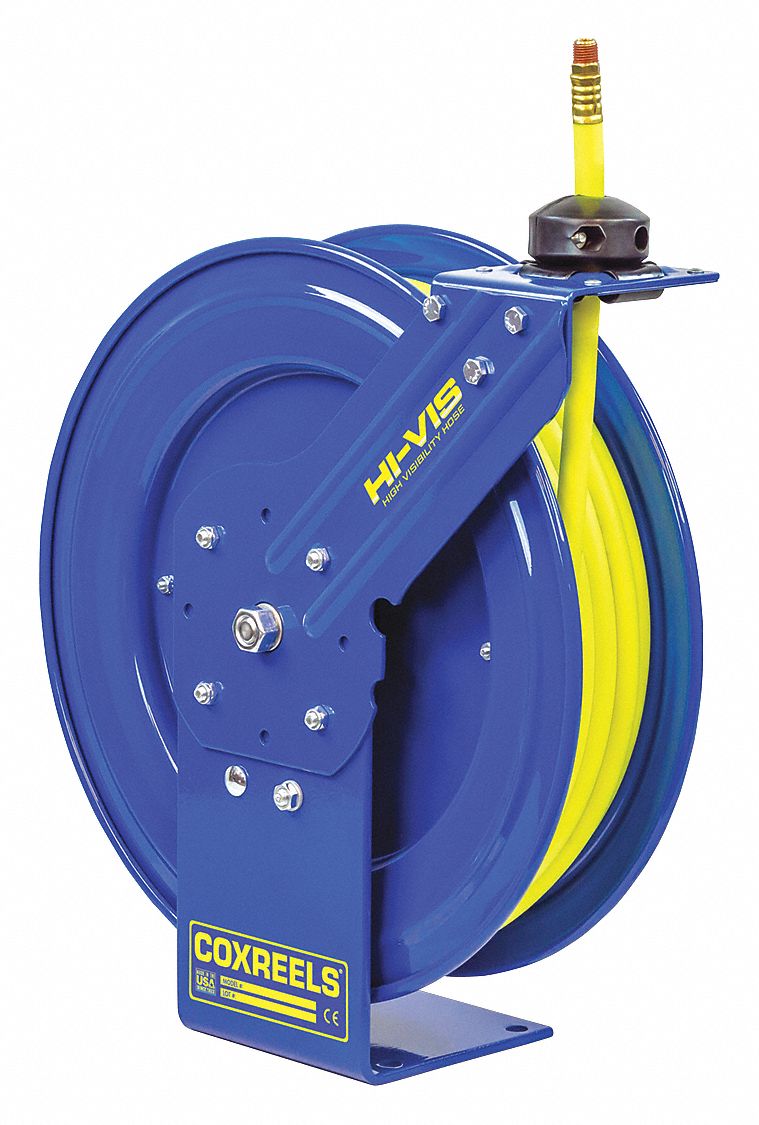

Coxreels 3G-OTH-460047 — Technical Specifications

Name: Coxreels 3G-OTH-460047 Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Brass, Blue (MPN SH-N-450-HV). Key specifications — Reel Color: Blue; Hose Capacity: 50 ft (1/2 in I.D.); Overall Dimensions: 19-1/2 in L x 8-1/4 in W x 21-1/4 in H; Swivel Material: Brass; Hose End Configuration: 1/2 in MNPT; Brand: COXREELS.
Brand: Coxreels

The COXREELS SH-N-450-HV is a high-visibility large-frame spring-return hose reel with a blue finish, designed for air or water service. It holds 50 ft of 1/2 in I.D. hose, features a 1/2 in MNPT hose end and brass swivel, and is rated for 300 psi maximum operating pressure. Overall dimensions are 19-1/2 in L x 8-1/4 in W x 21-1/4 in H.

View Product & Quote

Technical Specifications

Parameter	Value
MNPT	1/2 in
Type	Brass, Blue
Brand	COXREELS
Reel Color	Blue
Hose Capacity	50 ft (1/2 in I.D.)
Max Op Pressure	300 psi
Swivel Material	Brass
Overall Dimensions	19-1/2 in L x 8-1/4 in W x 21-1/4 in H
Hose End Configuration	1/2 in MNPT
Manufacturer Part Number	SH-N-450-HV
