Coxreels 3G-OTH-493821 — Technical Specifications

Name: Coxreels 3G-OTH-493821 COXREELS Spring Return Hose Reel: 50 ft (3/4 in I.D.), 3/4 in MNPT, 1,500 psi Max Op Pressure, Brass (MPN TMP-N-550). Key specifications — Reel Color: Blue; Overall Dimensions: 24 in L x 9-3/8 in W x 25-1/2 in H; Hose Capacity: 50 ft (3/4 in I.D.); Swivel Material: Brass; Hose End Configuration: 3/4 in MNPT.
Brand: Coxreels

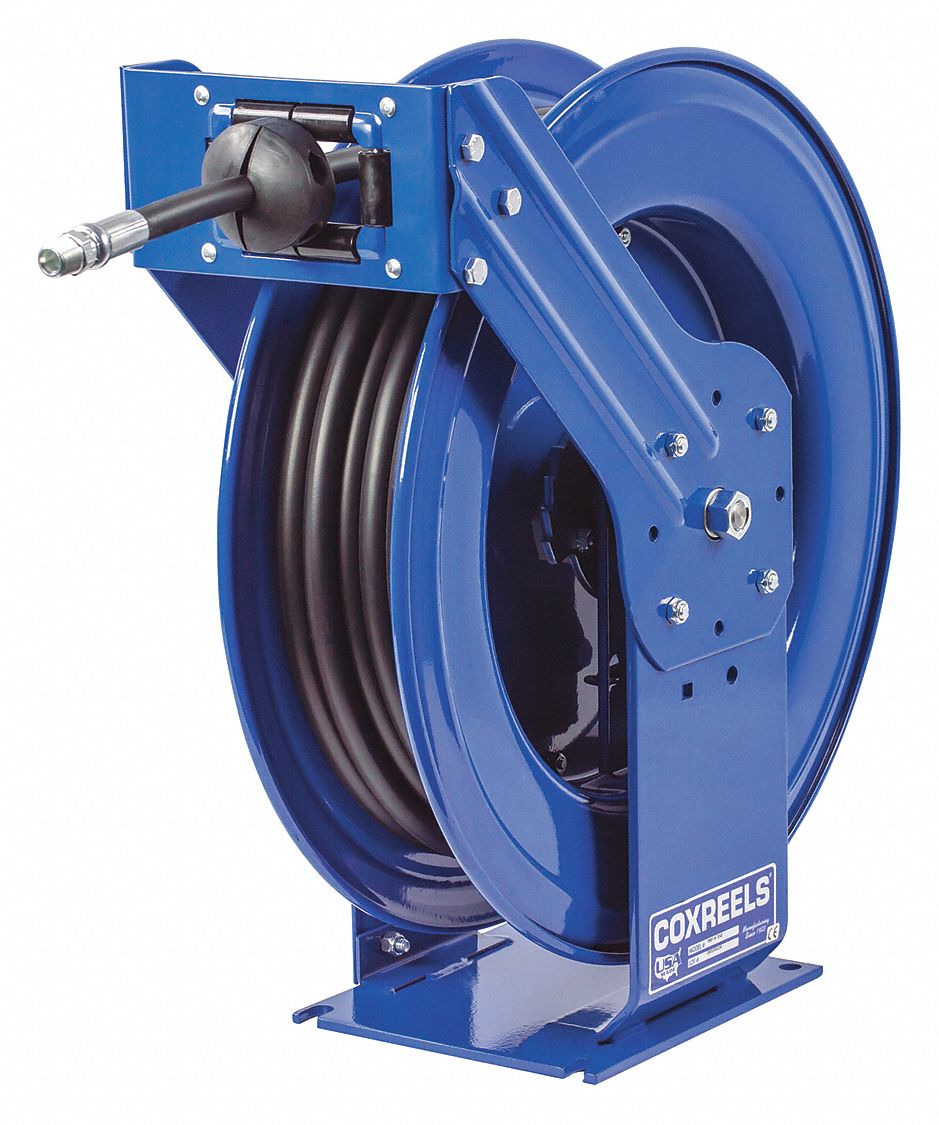

The COXREELS TMP-N-550 is a truck-mount oil spring-return hose reel with a 50 ft (3/4 in I.D.) hose capacity and a 1,500 psi maximum operating pressure. It features a brass swivel and 3/4 in MNPT hose end configuration, with overall dimensions of 24 in L x 9-3/8 in W x 25-1/2 in H.

View Product & Quote

Technical Specifications

Parameter	Value
MNPT	3/4 in
Type	Brass
Reel Color	Blue
Hose Capacity	50 ft (3/4 in I.D.)
Max Op Pressure	1,500 psi
Swivel Material	Brass
Overall Dimensions	24 in L x 9-3/8 in W x 25-1/2 in H
Hose End Configuration	3/4 in MNPT
Manufacturer Part Number	TMP-N-550
