Coxreels 3G-OTH-493820 — Technical Specifications

Name: Coxreels 3G-OTH-493820 COXREELS Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 2,500 psi Max Op Pressure, Brass (MPN TMP-N-450). Key specifications — Reel Color: Blue; Overall Dimensions: 19-1/2 in L x 9-3/8 in W x 21-1/4 in H; Hose Capacity: 50 ft (1/2 in I.D.); Swivel Material: Brass; Hose End Configuration: 1/2 in MNPT.
Brand: Coxreels

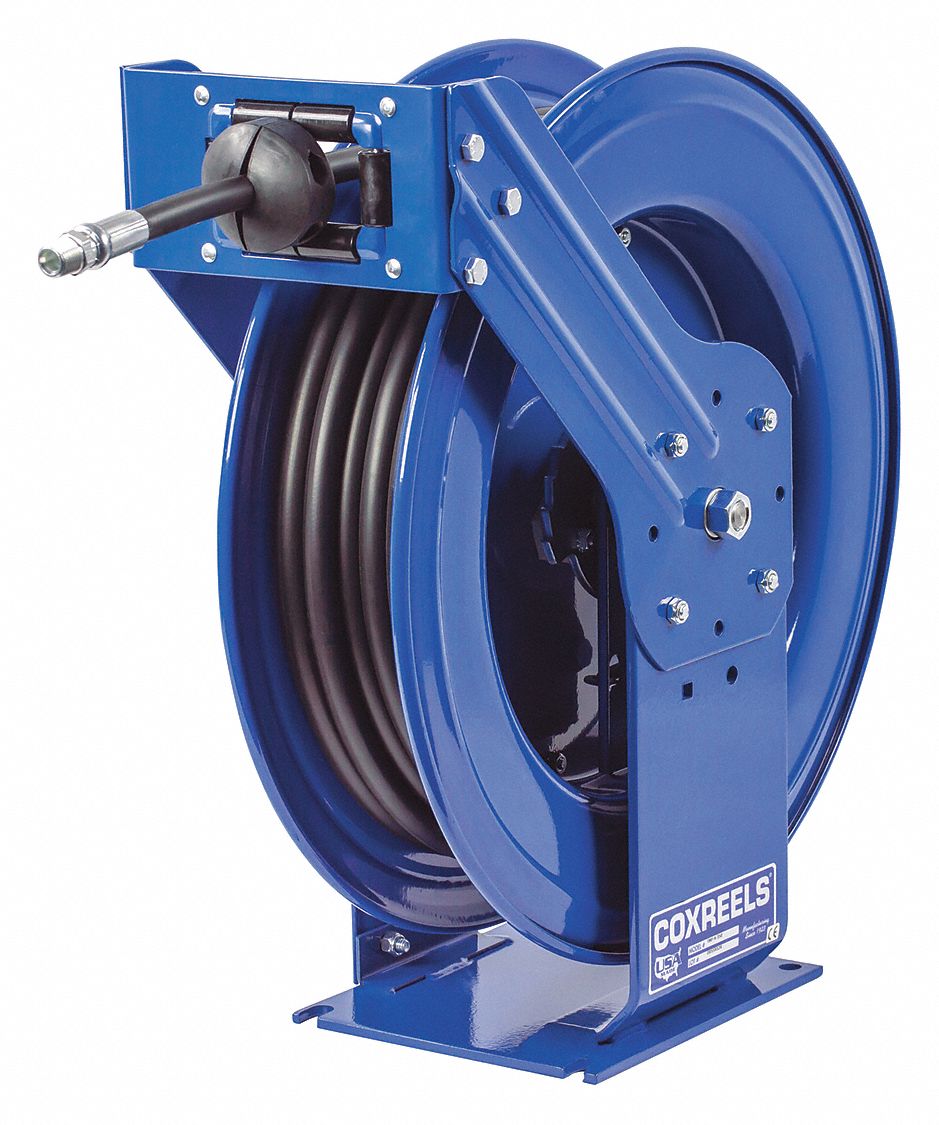

The COXREELS TMP-N-450 is a truck-mount oil spring-return hose reel with a 50 ft (1/2 in I.D.) hose capacity, 1/2 in MNPT hose end configuration, and a maximum operating pressure of 2,500 psi. It features a brass swivel and brass inlet, a blue reel, and overall dimensions of 19-1/2 in L x 9-3/8 in W x 21-1/4 in H.

View Product & Quote

Technical Specifications

Parameter	Value
MNPT	1/2 in
Type	Brass
Reel Color	Blue
Hose Capacity	50 ft (1/2 in I.D.)
Max Op Pressure	2,500 psi
Swivel Material	Brass
Overall Dimensions	19-1/2 in L x 9-3/8 in W x 21-1/4 in H
Hose End Configuration	1/2 in MNPT
Manufacturer Part Number	TMP-N-450
