Coxreels 3G-OTH-493818 — Technical Specifications

Name: Coxreels 3G-OTH-493818 COXREELS Spring Return Hose Reel: 100 ft (3/8 in I.D.), 3/8 in MNPT, 3,000 psi Max Op Pressure, Blue (MPN TMP-N-3100). Key specifications — Reel Color: Blue; Overall Dimensions: 24 in L x 9-3/8 in W x 25-1/2 in H; Hose Capacity: 100 ft (3/8 in I.D.); Swivel Material: Brass; Hose End Configuration: 3/8 in MNPT.
Brand: Coxreels

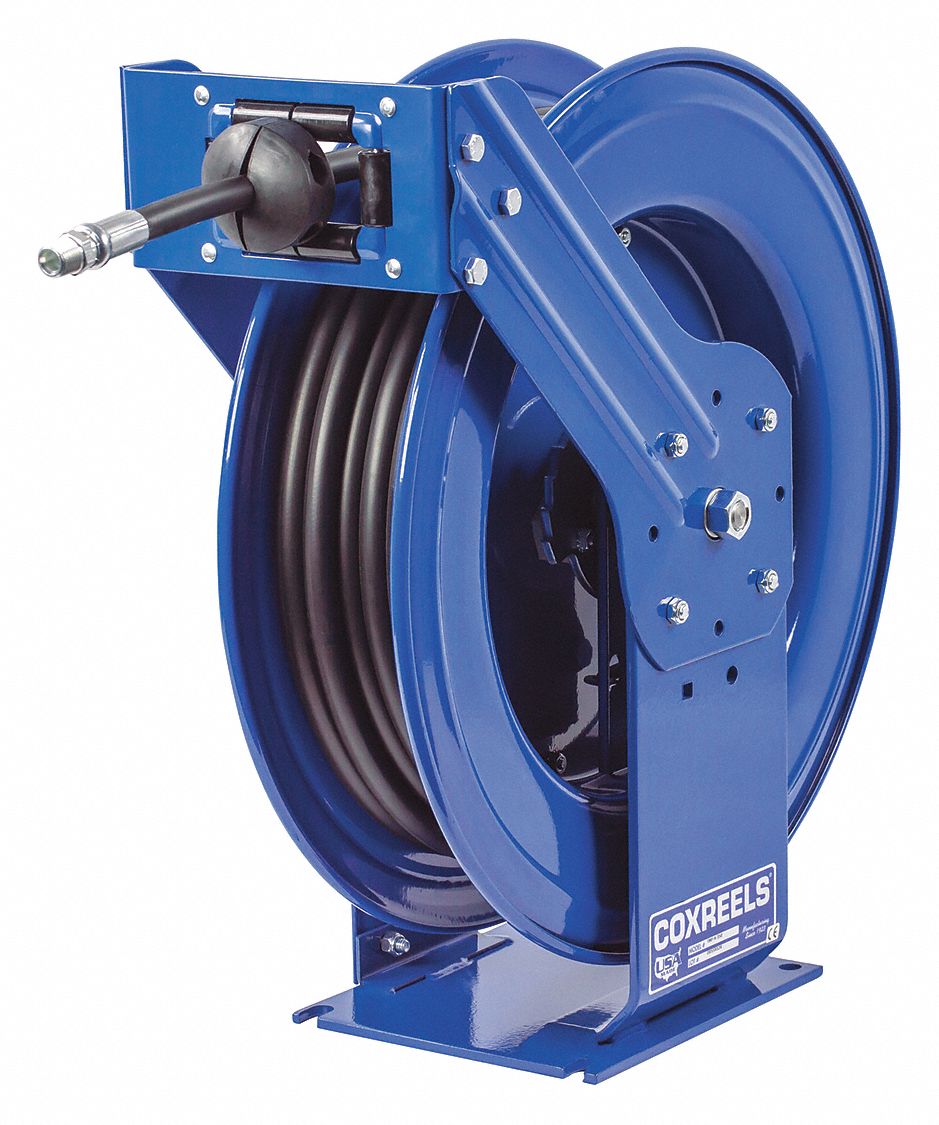

The COXREELS TMP-N-3100 is a truck-mount spring-return hose reel with a blue finish, designed for oil service. It accommodates 100 ft of 3/8 in I.D. hose, features a 3/8 in MNPT hose end and a brass swivel, and is rated for a maximum operating pressure of 3,000 psi. Overall dimensions are 24 in L x 9-3/8 in W x 25-1/2 in H.

View Product & Quote

Technical Specifications

Parameter	Value
MNPT	3/8 in
Type	Blue
Reel Color	Blue
Hose Capacity	100 ft (3/8 in I.D.)
Max Op Pressure	3,000 psi
Swivel Material	Brass
Overall Dimensions	24 in L x 9-3/8 in W x 25-1/2 in H
Hose End Configuration	3/8 in MNPT
Manufacturer Part Number	TMP-N-3100
