Coxreels 3G-OTH-460734 — Technical Specifications

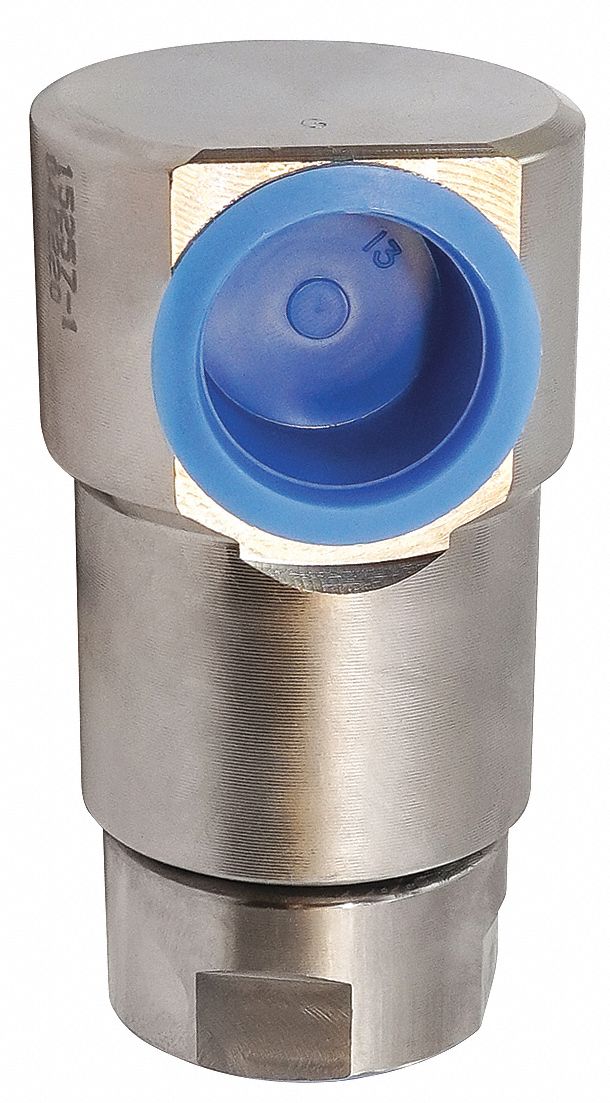

The COXREELS 15257-1-1 is a brass hose reel swivel with 1 in FNPT inlet and outlet configurations, designed for the 1125/1175/1275/SP Reel Series. It features an FKM seal material and a maximum operating pressure of 4,000 psi.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 in |
| Type | For 1125/1175/1275/SP Reel Series |
| Brand | COXREELS |
| Seal Material | FKM |
| For Reel Series | SP |
| Max Op Pressure | 4,000 psi |
| Manufacturer Part Number | 15257-1-1 |
| Inlet Swivel Configuration | 1 in FNPT |
| Outlet Swivel Configuration | 1 in FNPT |
