Climax Metal Products 3G-OTH-121374 — Technical Specifications

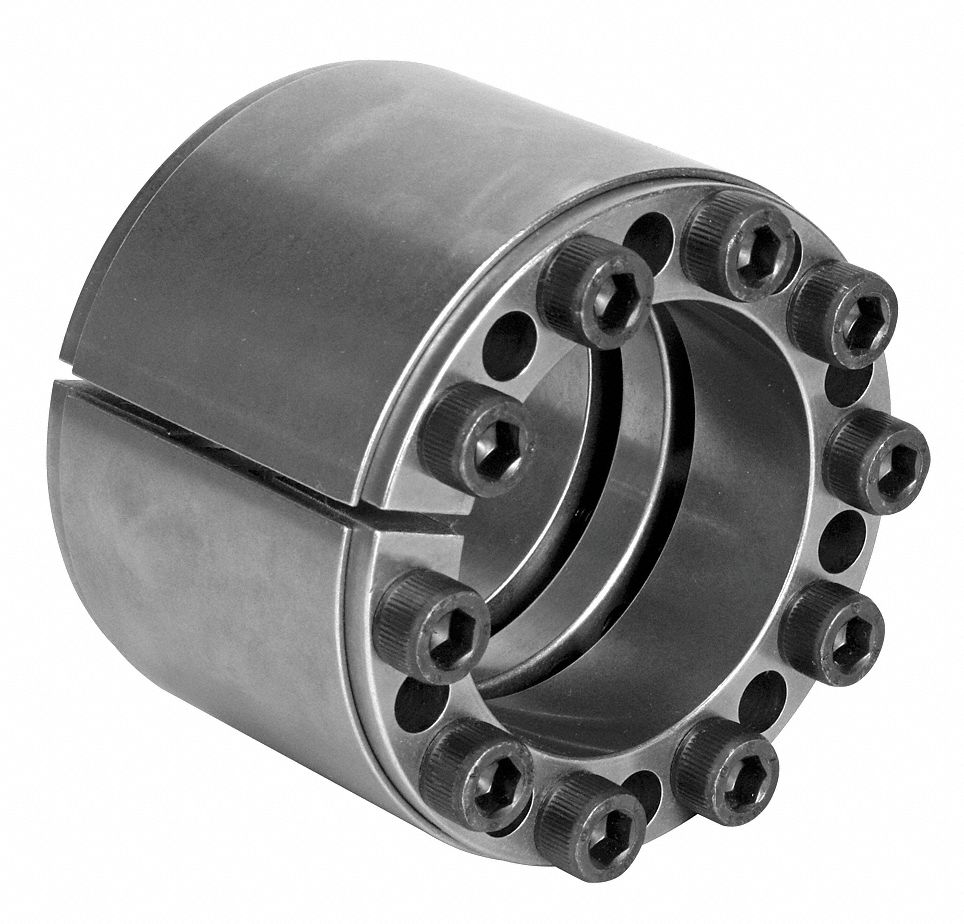

The CLIMAX METAL PRODUCTS Keyless Bushing is an inch-system Multi-Screw Locking Assembly bushing designed for a 2 1/4 in shaft diameter. It features a 3 17/32 in outer diameter and a 2.913 in width, with no flange. This keyless bushing, model C405E-225, provides a mechanical locking solution for shaft mounting applications.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 3 17/32 in |
| Wd | 2.913 in |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | None |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Inch |
| Manufacturer Part Number | C405E-225 |
