Climax Metal Products 3G-OTH-117989 — Technical Specifications

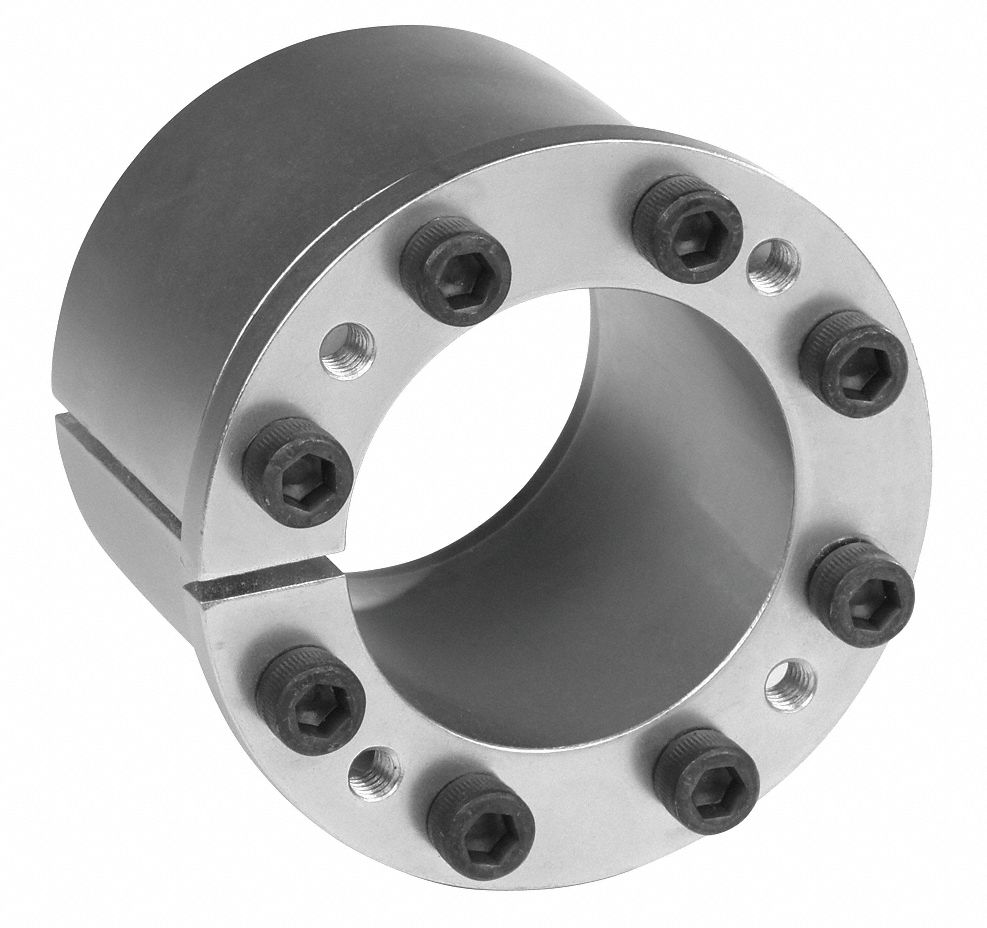

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly keyless bushing designed for a 45 mm shaft diameter with a 73 mm outer diameter and 62.8 mm width (MPN C192M-45X73). This metric component provides a keyless shaft-to-hub connection using multiple locking screws.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 73 mm |
| Wd | 62.8 mm |
| Type | For 45 mm Shaft Dia |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Metric |
| Manufacturer Part Number | C192M-45X73 |
