Climax Metal Products 3G-OTH-115519 — Technical Specifications

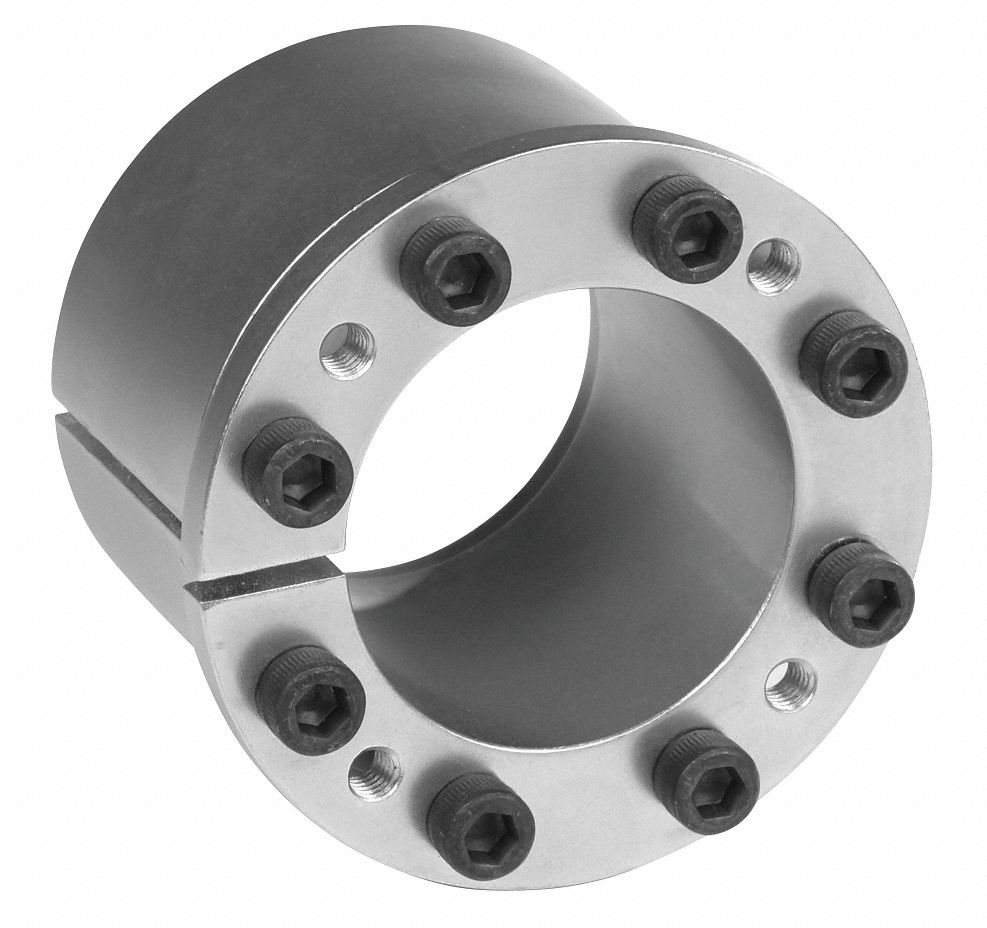

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly keyless bushing in the Metric system. It is designed for a 15 mm shaft diameter, with a 30 mm outer diameter and 31 mm width (MPN C192M-15X38). This component provides a keyless shaft-to-hub connection using multiple locking screws.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 30 mm |
| Wd | 31 mm |
| Type | For 15 mm Shaft Dia |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Metric |
| Manufacturer Part Number | C192M-15X38 |
